Product Details:
Payment & Shipping Terms:
|

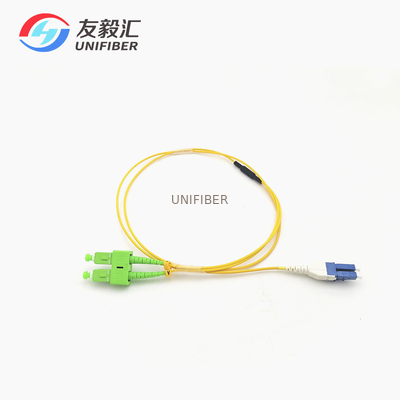

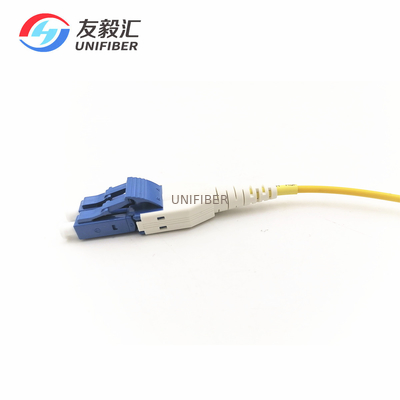

| Product: | Polarity Reverse Uniboot LC/UPC-SC/APC | Connector: | Uniboot LC/UPC To SC/APC |
|---|---|---|---|
| Fiber Type: | Single Mode G657A2 | Cable Diameter: | 2.0mm |
| Length: | 1/3/5/7/10m | OEM Brand: | Support |
| High Light: | G657A2 Duplex Patch Cord,Uniboot Duplex Patch Cord,SC APC Single Mode Patch Cord |
||
LC Reverse polarity patch cable allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.In UNIFIBER, all sorts of uniboot LC cables are available. It can be customized with fiber types and cable diameters.
Features
• Integrated push pull tab for ease of access and handling
• Low profile design reduces patching footprint
• Round 2 mm DX fibre design minimises patch cable volume and enhances looming neatness
• Low loss, high performance multimode connectors to minimise channel losses
Applications
• Termination enclosure to equipment patching
• Equipment to equipment patching
• Cross-connect patching (for high density patching)
Specification
| tem | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
