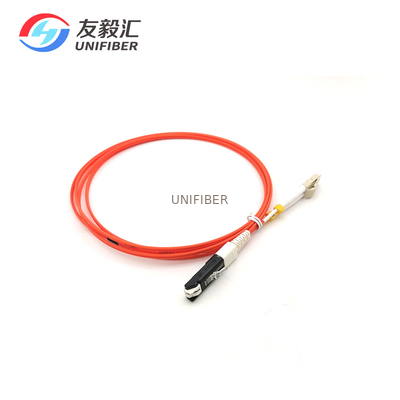

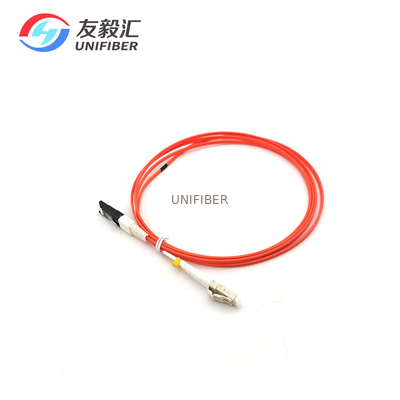

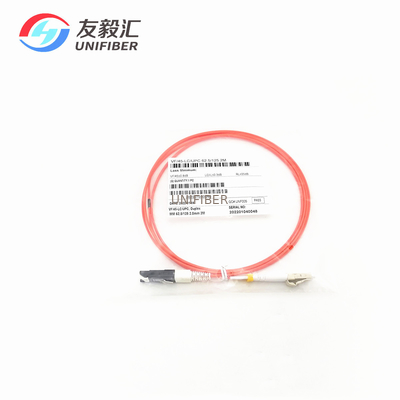

GGP Coated Fiber Optic Patch Cord Multimode OM1 VF45-LC Duplex 1m LSZH

Tested to TIA and IEC performance specifications3M Volition VF-45 Patch Cords use the excellent reliability and ruggedness of 3M glass/glass/polymer (GGP) fiber optic cable which is ideal for applications requiring tight bends, durability and dependability. The cable used to make Volition patch cords is grade index multimode optical fiber with 10um glass cladding diameter and 125um polymer coating diameter. The polymer is a tough permanent coating, which provides improved strength and bends resistance. The static fatigue parameter is a 50% improvement over standard life. This High strength fiber is fully compatible and intermatable with standard glass fiber.VF-45 Fiber Optic Patch Cord is designed by 3M and features plug and jack design without the need to adapters. VF-45 plug is inserted into the socket (jack) at a 45-degree angle, pressing a pair of fibers into V-grooves inside the socket. This design of VF-45 Connector eliminates the need for expensive ferrules thus reduce connector costs.

Features

VF-45 Connector is half the size of the SC Connector

VF-45 Optical Connector works on standard 62.5µm or 50µm multimode fiber
Minimum space required when mounted in telecom enclosure or other racks

RJ-45 style latch for ease of use and familiarity
RoHS compliant for all VF-45 connector material

Application
Interconnect socket (field terminated)
Wall outlets and faceplates
Termination and cleaning kits
Test equipment

Technical Data
