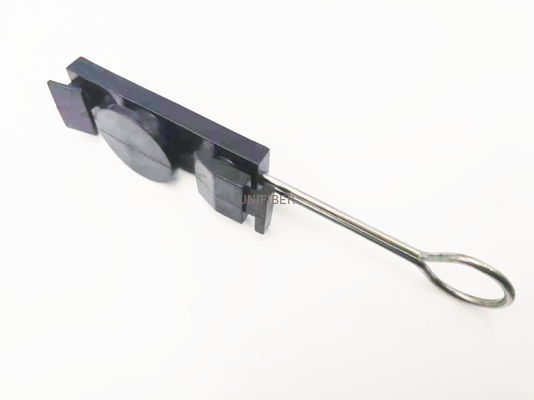

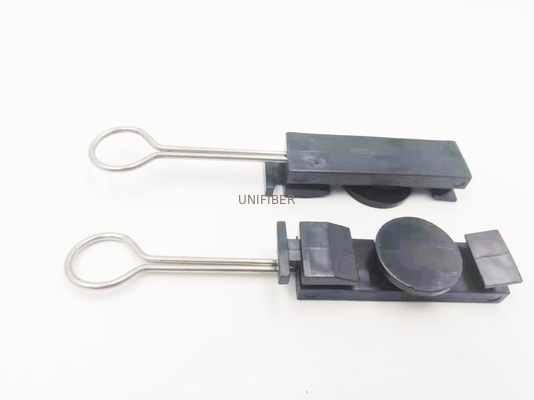

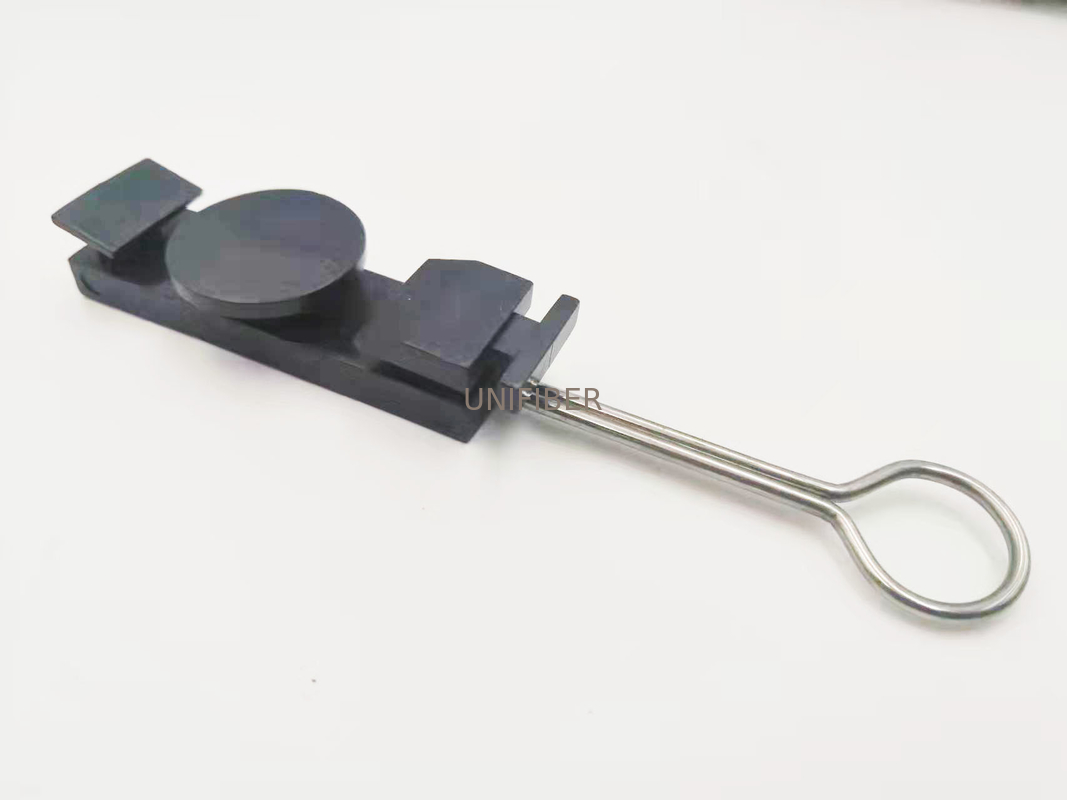

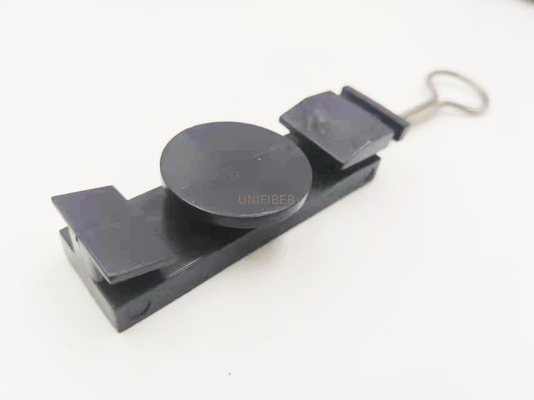

CATV System FTTH Tension Clamp Polishing SS ABS For Drop Wire

S type plastic anchor clamp is used to bind self-supporting optical fibers cable supporting wire, to pull cable into cable supporting fittings

S Type Fiber Cable Clamp for subscriber branching. Intended for mounting cables with insulated neutral messenger to the brackets
and hooks supports of power lines. this was made by High quality with ABS +Stainless material

Features

1. S Type Fiber Cable Clamp is designed to tension steel wire diameter up to 3 mm of FRP messenger of drop cable in outdoor FTTX.
2. Drop cable anchor clamp is used on dead-end fiber optic cables.
3. FTTH drop cable S-type fitting is easy in installation, and requires preparation of optical cable before locking with hook
4.Self-locking construction perform easiest installation on pole.
5.This type of FTTH plastic cable accessory has the principle of a round route for fixing the messenger, it helps to secure it as tightly as possible.
6.Stainless steel wire ring allows installations of FTTH clamp drop wire on a pole brackets.
7.S Type Fiber Cable Clamp passed the tensile tests, operation experience with temperatures ranging from -60degree up to 60 degree ,temperature cycling test, aging test, corrosion resistant test.

Application

Local Area Network
CATV System
Telecommunication Networks
Equipment Test
