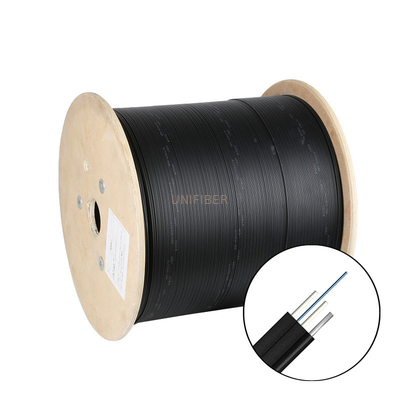

1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant

Large Image : 1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1 2 4 Core Outdoor Ftth Fiber Drop Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10km
Price:	Negotiable

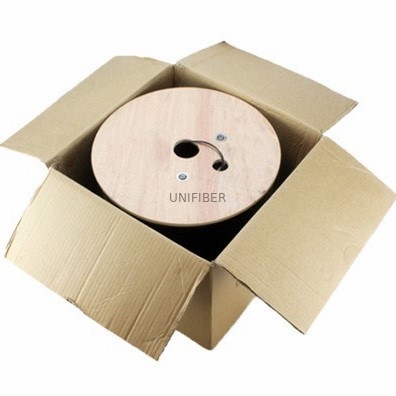

Packaging Details:	wooden drum
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500km/day

Contact Now

Detailed Product Description

Product:	1 2 4 Core Outdoor Ftth Fiber Drop Cable	Fiber Cores:	1/2/4 Fiber
Fiber Type:	G657A1 Or G657A2	Dimension:	2.0*5.0mm Flat
Package:	1~2km Per Roller	Jacket:	Black LSZH
High Light:	Flame Retardant Outdoor FTTH Drop Cable , G657A2 Outdoor FTTH Drop Cable , 2 Core FTTH Drop Cable

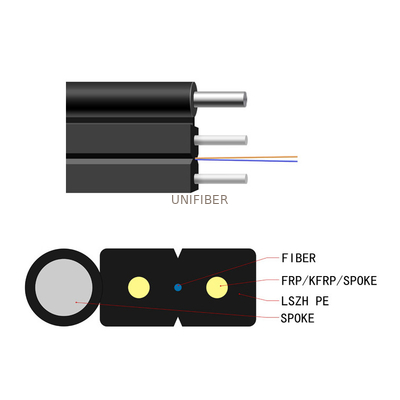

1 2 4 Core FTTH Flat Outdoor FRP Fiber Drop Cable G657a2

Features

●Good mechanical and environmental characteristics;

●Flame retardant characteristics meet the requirements of relevant standards;

●The mechanical characteristics meet the requirements of relevant standards;

●Soft, flexible, easy to splice, and with big capacity data transmission;

●Meet various requirements of market and clients.

●Used in indoor cabling, and end users directly cabling;

●Used as access building cable.

OUTDOOR

INDOOR

Specification

Fiber count					1F/2F/4F
Attenuation					1310nm:≤0.36 1550nm:≤0.22
Color Of fiber					Blue Orange Green Brown
Fiber Type					G652D/G657A1/G657A2
Strength member					Steel wire/FRP/KFRP
Outer sheath					LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions					2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range					-20 ℃ to + 70 ℃
Installation temperature range					-0 ℃ to + 60 ℃
Transport and storage temperature range					-20 ℃ to + 70 ℃
Tension Load (N)					Short term :800N Long term :500N
Crush Load(N)					Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius					30 x OD
Minimal operation bending radius					15 x OD
Cable marking					The marking length 1meter apart , as required
