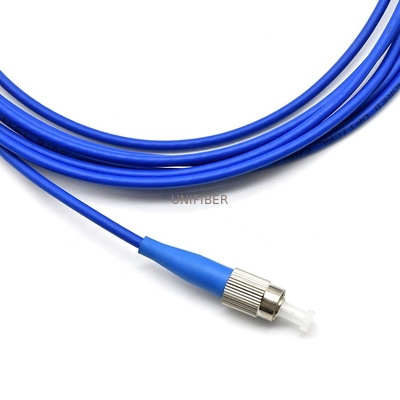

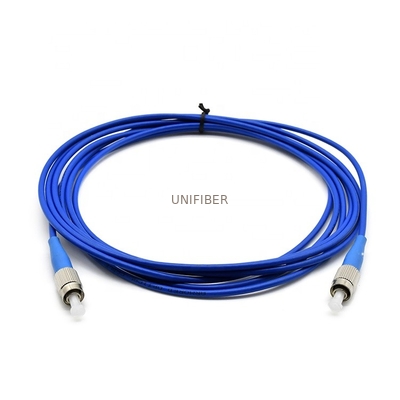

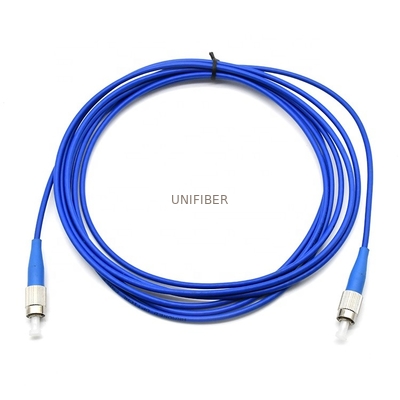

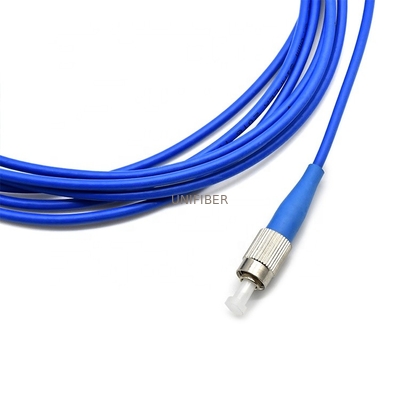

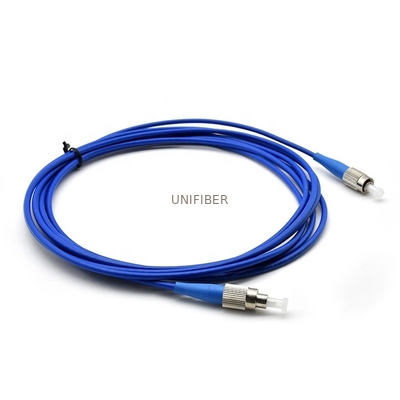

Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC

Name: Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Brand: Unifiber or OEM
SKU: armored fiber optic patch cord
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (194 reviews)

Large Image : Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	armored fiber optic patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	Armored Fiber Optic Patch Cord	Cable Jacket:	LSZH
Jacket Color:	Blue	Fiber Type:	Single Mode G657A1
Connector:	FC/UP	Cable DIameter:	3.0mm
High Light:	Rodent Resistant Armored Fiber Optic Patch Cord , Simplex Armored Fiber Optic Patch Cord , 3.0mm Armored Fiber Optic Patch Cable

Rodent resistance armoured fiber optic patch cord single mode simplex 3.0mm FC/UPC-FC/UPCDescription:
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.

Feature:

◈ Trampling Resistance◈ Moisture Resistance
◈ Gas Resistance
◈ Oil Resistance
◈ Rodents/Pests Resistance
Application:
◈ Indoor, Hazardous Areas

Connector Type	LC LC SC FC ST optional
Fiber Mode	OS2 9/125μm
Wavelength	1310/1550nm
Fiber Count	Simplex
Insertion Loss	≤0.3dB
Return Loss	UPC ≥50dB, APC ≥60dB
Cable Diameter	3.0mm
Cable Jacket	PVC / LSZH
Polarity	/
Operating Temperature	-40~75°C

Zirconia Ceramic Ferrule

◈ High-precision ceramic ferrules are used to ensure the stability and durability of optical fiber connectors. ◈ The precision ferrules can reach up to 1000 times insertion lifespan.

Optional Connectors

◈ Tough and corrosion-resistant, not easily deformed. ◈ Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.

Fiber Optic Connectors Guidance

LC Typical Applications

High-density connections, SFP and SFP+ transceivers and LC adapters.

SC Typical Applications

Datacom and telecom, GPON, EPON, GBIC and SC adapters.

ST Typical Applications

Datacom, FTTH, corporate networks.

FC Typical Applications

Datacom, telecom, measurement, single mode lasers

Polish Type

PC suited for telecom operator equipment. UPC suited for ethernet network equipment, devies, media converters and fiber switches. APC suited for high bandwidth applications and long distance links, such as FTTX.
PC/UPC is generally blue, APC is green
