Product Details:
Payment & Shipping Terms:
|
| Product: | MT-FA Ferrule Patch Cord | Fiber Count: | 8F 12F 24F |
|---|---|---|---|
| Fiber Type: | G652 G657 OM1-OM4 | Insert Loss: | ≤0.50 DB Typical 0.20dB |
| Return Loss: | ≥60dB (SM), ≥25 DB(MM) | Application: | Multi-Channel Device,Array Laser, QSFP, QSFP+ |
| Highlight: | MT FA Short Patch Cord,Bare Ribbon Short Patch Cord,8F Ferrule Patch Cord |
||

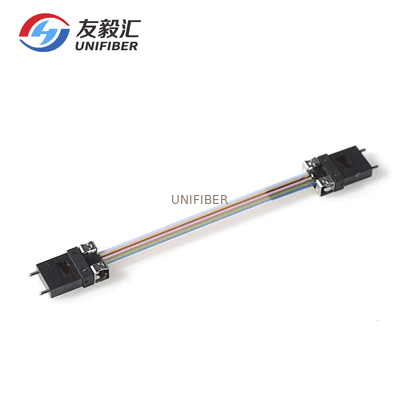

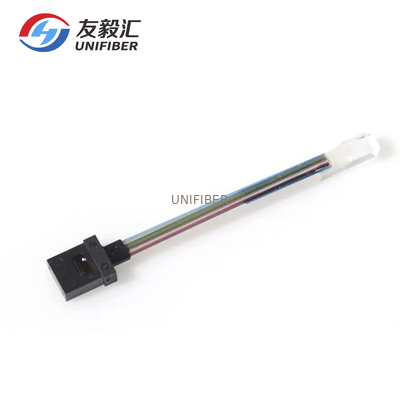

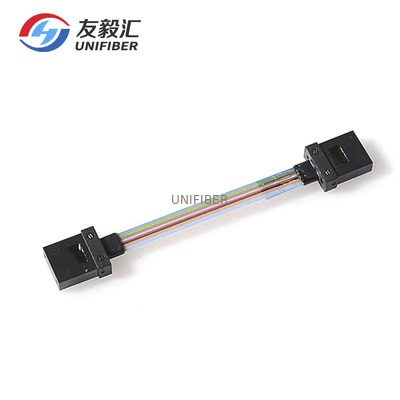

High Precision MT-FA Ferrule patch cord 8F 12F 24F bare ribbon fiber
MT-FA using total reflection FA as the RX receiving end to directly couple with the PD array to complete the optical -to- optical conversion of the optical path; use the small size and multiple channels of the MT ferrule to realize the parallel transmission of multiple optical channels at present, it is widely used in high-speed optical module connection.
Features
Transmission rate: 40Gbps/100Gbps/168Gbps
Simple structure easy to locate
Low cost
GR-1435 compliant
Customized products available
Application
QSFP(quad small form-factor pluggable
SFP+active optical cables
Parallel light optical transceiver module
Super computers
Data centers
