indoor TV Fiber Cable Assembly High Speed HDMI 2.0 Active Optical Cable 4k 8K

Large Image : indoor TV Fiber Cable Assembly High Speed HDMI 2.0 Active Optical Cable 4k 8K

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	Active Optical HDMI fiber cable

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Poly bag/Wheel roll+sticker+portable box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Active Optical HDMI Fiber Cable	Connector:	HDMI, 24K Gold Plated
Conductor:	24-30AWG TC/BC/CCS, Gold Plated	Outer Jacket:	TPE(Or PVC Optional)
Length:	1m,5m,10m,20m,30m,50m,60m,80m,100m,150m,... 300m (Customer Required)	Application:	Indoor TV
High Light:	TPE Fiber Cable Assembly , HDMI 2.0 Protocol Fiber Cable Assembly , TV HDMI 2.0 Active Optical Cable

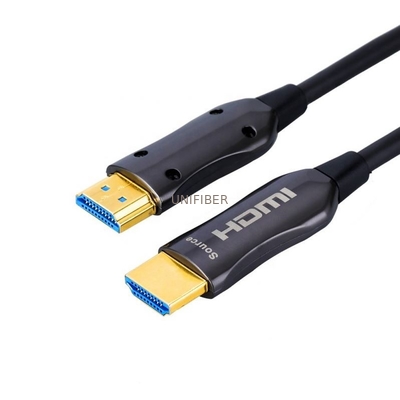

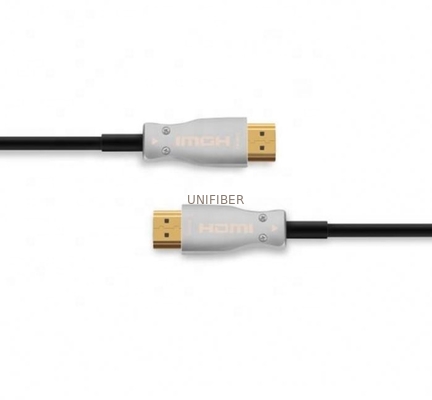

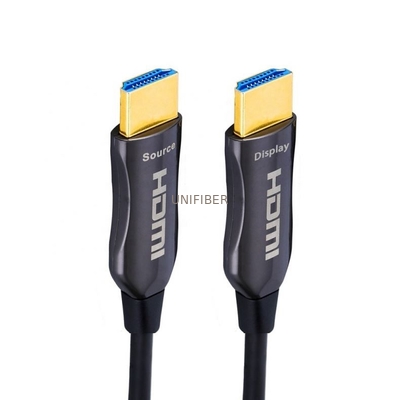

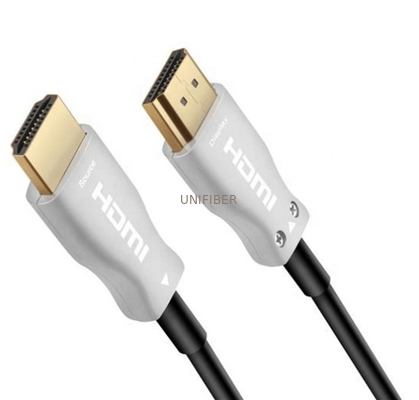

High Speed HDMI 2.0 Active Optical Cable 4k 8K

HDMI 2.0 active optic cable is a fiber optic cable is based on the unique core 45°FA patented technology. It USES optical fiber as the HD signal transmission medium, supports HDMI 2.0 protocol, supports length customization and shell customization, and is a mature and competitive HD interconnection scheme in the market.

Features:

Supports computer resolutions to 4K@60Hz@4:4:4
Plug and Play
Compatible with HDMI 2.0 standard.
Support HDCP2.2@ARC
Self-detecting function for EDID information
No loss of signal
Hybrid optical cable with fiber and copper wire
PIN gold plated,shell gold plated
Environmental Specifications:For Indoor use only;
Operating temperature:-40℃ to 70℃
Minimum bending radius 20mm
Max.tension force:100N
Powered via HDMI devices
4core OM3 Multimode Fiber(high speed data)and 7core copper cable
Round cable Black PVC jacket
RoHS 2.0 & REACH compliant

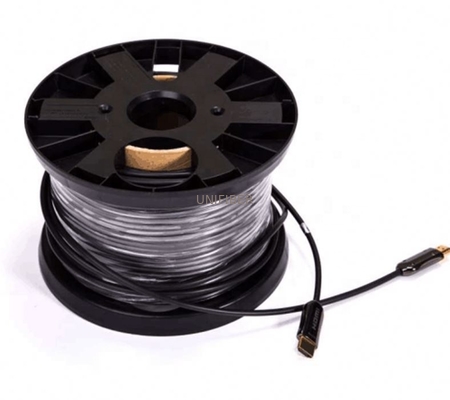

Packing:package 1pc reel

Specification:

Product name	Active Optical HDMI fiber cable
Plug	19-pin male to male TPE(Or PVC optional)
Outer Jacket	TPE(Or PVC optional)
Conductor	Optic +oxygn-free copper
Connector	24K Gold plated
Resolution	2.0 version:18Gbps 4K@60Hz 4:4:4 2.1 version:48Gbps 8K@60Hz 4:4:4
Awg	Optical 30awg
OD	4.6mm
Length	1m,5m,10m,20m,30m,50m,60m,80m,100m,150m,... 300m (Customer required)
Packing	Poly bag/Wheel roll+sticker+portable box
Certification	CE, FCC, RoHS, HDMI adopter
