1 Core 2 Core Indoor Armored Fiber Optic Cable Anti Rodent Single Tube

Large Image : 1 Core 2 Core Indoor Armored Fiber Optic Cable Anti Rodent Single Tube

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	GJSFJV

Payment & Shipping Terms:

Minimum Order Quantity:	10km
Price:	Negotiable
Packaging Details:	wooden drum
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500km/day

Contact Now

Detailed Product Description

Product:	Indoor Armored Fiber Optic Cable	Fiber Count:	1 Core 2 Core
Fiber Type:	Single Mode G652D	Cable Diameter:	3.0mm
Cable Jacket:	LSZH	Armored:	Stainless Steel
Highlight:	2 Core Armored Fiber Optic Cable , Indoor Armored Fiber Optic Cable , Anti Rodent Armoured Fibre Optic Cable

Description:

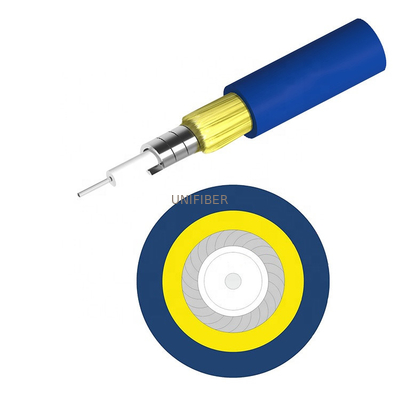

Simplex Armored Optical Fiber Cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC, LSZH or TPU sheath.

Key Features:

*Protected by mini diameter stainless steel spiral tube.

*Steel armored tube enhances cable twist resistance.

*High tensile resistance, pressure resistance, anti-mouse and ant-bite.

*Different sheath material options: flame retardant PVC, LSZH, PE, TPU etc.

*Flexible, convenient to connect and easy to deploy.

*Pass UL Certification and meet ROHS standards.Can be required:Fiber sort/Fiber brand/Sheath color/The fiber and tube color/Cable packing length/Marking word/Other

Specification:

Cable Type	Fiber Count	Tight Diameter (mm)	Cable Diameter (mm)	Cable Weight Kg/km	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100m)	Bending Radius Static / Dynamic mm
GJSFJV	1	0.6	2.0	11	300/750	200/1000	10D/20D
GJSFJV	1	0.6	2.2	12	300/750	200/1000	10D/20D
GJSFJV	1	0.6	2.4	13	300/750	200/1000	10D/20D
GJSFJV	1	0.9	3.0	15	300/750	200/1000	10D/20D

Description:

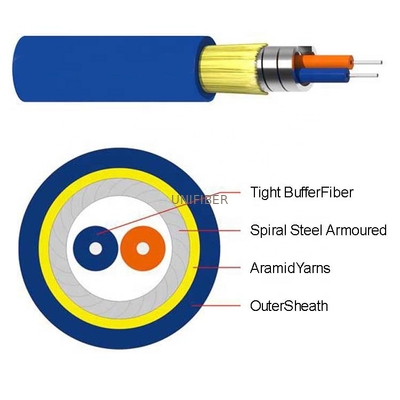

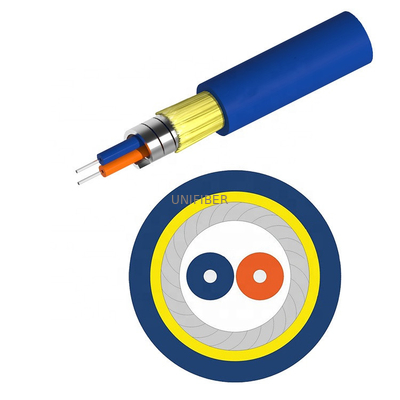

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Key Features:

*2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and

anti-rodent

*Light weight,flexibility,and friendly installation.

*Good mechanical and environmental performance..

*Flame retardant outer sheath provide good safety.Can be required:Fiber sort/Fiber brand/Sheath color/The fiber and tube color/Cable packing length/Marking word/Other

Specification:

Cable Type	Fiber Count	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJSFJV	2	0.6	3.2	15	300/750	200/1000	10D/20D
GJSFJV	2	0.9	4.0	28	300/750	200/1000	10D/20D
