|Product:||Toneable Flat SST Drop Cable Optitap SC/APC Pre-Connectorized||Connector A:||Optitap|
|Connnector B:||SC/APC||Cable Diameter:||4.5*9.0mm Or 4.5*12mm|
|Conductor:||24AWG||Length:||50F 75F 100F 125F 200F 300F|
Toneable SST Drop Cable,
24AWG SST Drop Cable,
50F Flat Drop Cable
Toneable mini LT Flat drop cable offers compact, durable, and easy to locate optical fiber solution in a really accessible

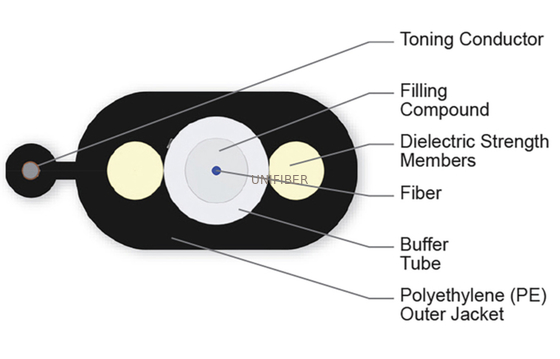

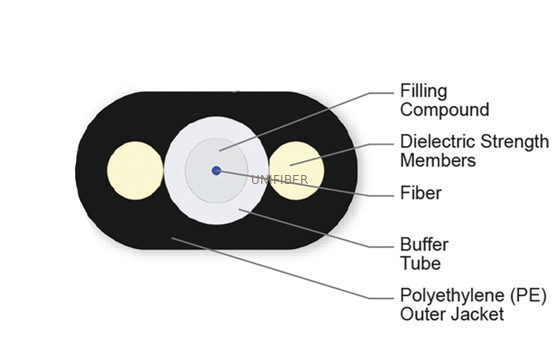

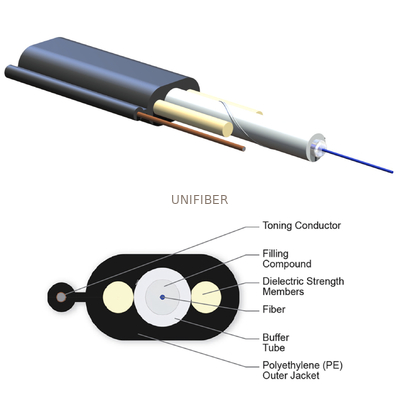

construction. The fiber optic cable's webbed design allows the locating wire to be easily separated from the main cable sheath by hands, providing simple, rapid routing and grounding of the locating wire. To construct the cable, up to 12 optical fibers are placed in a 2.0mm gel-filled buffer tube to creat a flexible, easy to access core. Then 2 FRP rods are placed diametrically opposite on either side of the fiber core, providing excellent crush resistance and tensile strength during installation and over the lifetime of cable. A 24AWG copper wire is aligned along the outside edge of one of the FRP rods to provide locatability The locating wire, strength member rods, and fiber core are then encapsulated in a durable PE jacket to create a flat cable cross section and lend added protection to the cable core. Between the locating wire and the adjacent FRP rods, the jacket forms a thin web that is easily separated by hand, allowing quick removal of the copper wire from the main sheath.
1.Easily removable copper wire allows fast cable location while facilitating bonding and grounding;
2. Compact, easy to access cable;
3. Suitable for direct buried and duct FTTX drop installations, and aerial self-supporting applications;
4. Fiber counts of 1/2/4/6/8/12, even 24 per tube for minimizing deployment costs.
5. 1200N rated installation load;-Standard availability with G652D ZWP optical fiber;

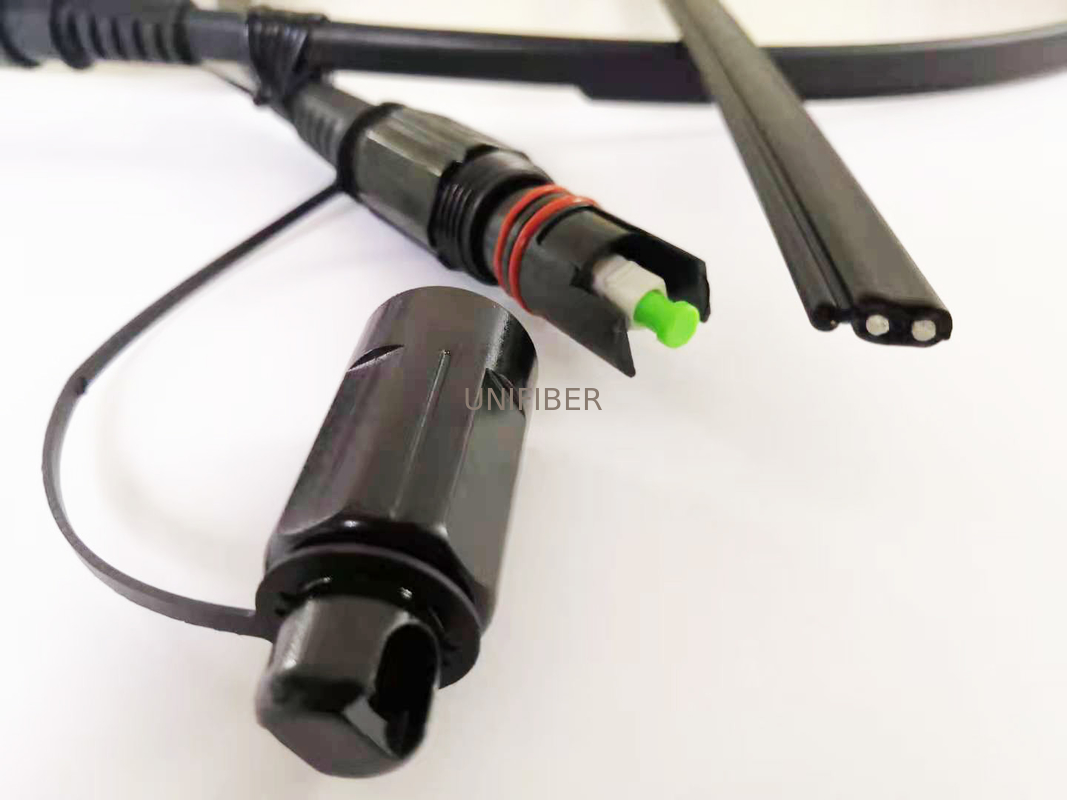

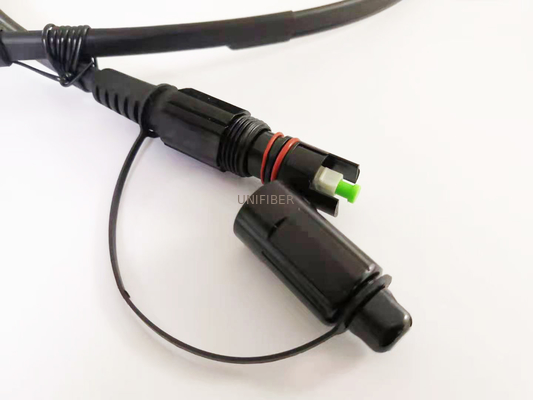

6. Hardend with different type outdoor mini sc/apc connectors.
|Fiber Count||Conductor Size (AWG)||Width (mm)||Height (mm)||Weight (km/kg)|
|Tensile Load||Short Term||440N|
|Axis Bending Radius||Loaded||30mm|
|Temperature Range||Installation||-10℃ ~ + 60℃|
|Operation||-40℃ ~ + 70℃|
