FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly
FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly

Large Image :  FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: ODVA -LC Duplex FTTA CPRI Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: FTTA CPRI Patch Cord ODVA -LC Duplex Connector: ODVA -LC Duplex
Cable Diameter: 5.0/7.0mm Fiber Type: Single Mode G657A1
Jacket Material: LSZH Application: FTTA
High Light:

7.0mm CPRI Patch Cord

,

IP67 CPRI Patch Cord

,

RRU Armored Fiber Cable

FTTA outdoor fiber patch cord CPRI available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI FTTA cable is can armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quickdeployment, military, mining, oil field, TV broadcasting, and communication emergency repair.Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core Easy Operation, reliable and cost-effective.

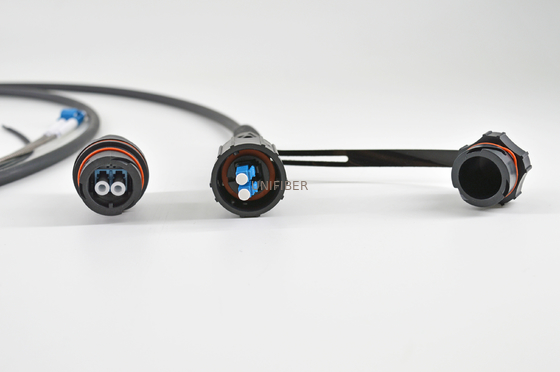

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly 0

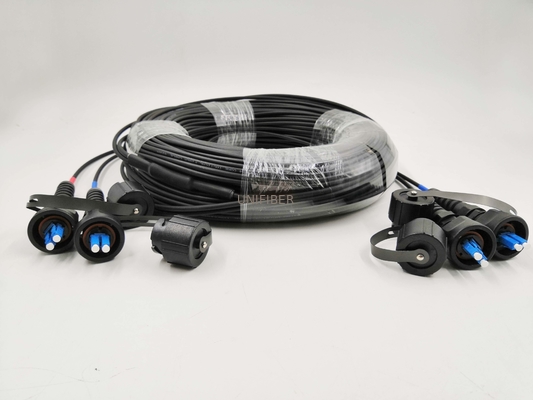

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly 1

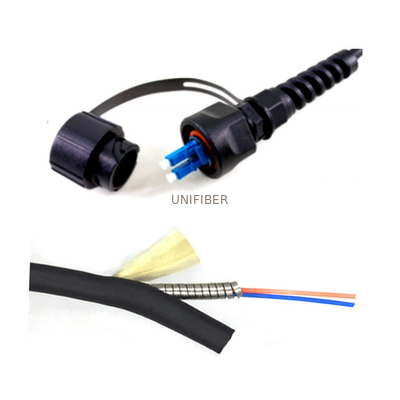

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly 2
Item
Parameter
Connector Type
ODVA/LC ,DLC
SMFiber Type
SM 1310/1550 or MM 850/1300
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Interchangeability
≤0.2dB
Durability
≤0.2dB
Fiber Length
1m ,2m,3m ...any length for optional
Length and tolerance
+10cm
Operating Temperature
-45~85℃
Storage Temperature
-45~85℃



FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly 3FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly 4
