Product Details:
Payment & Shipping Terms:
|

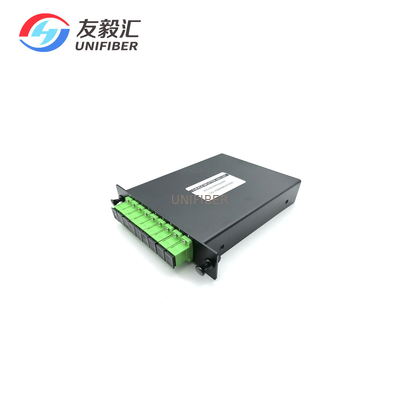

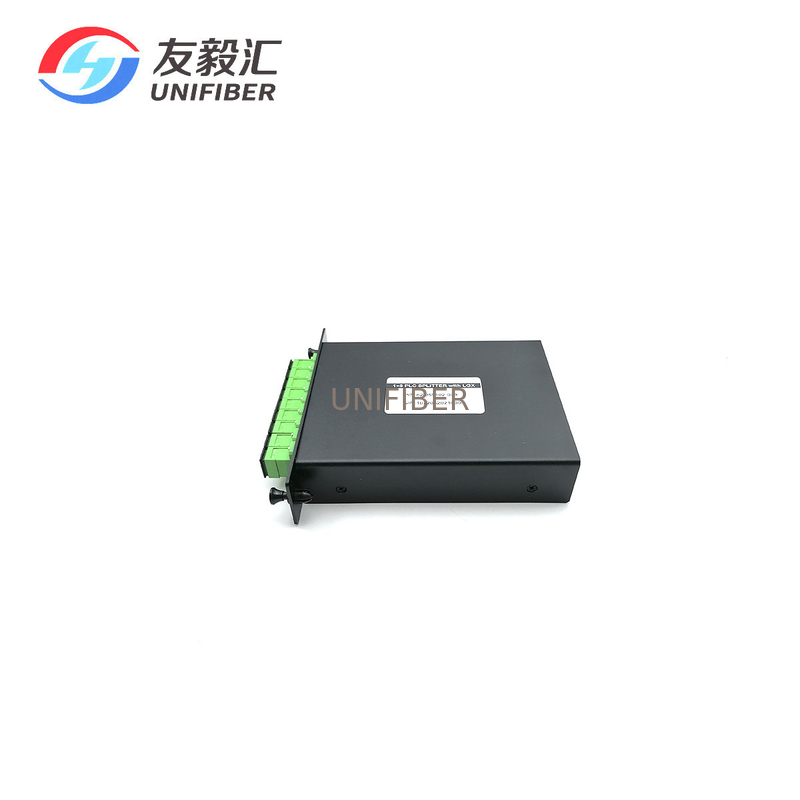

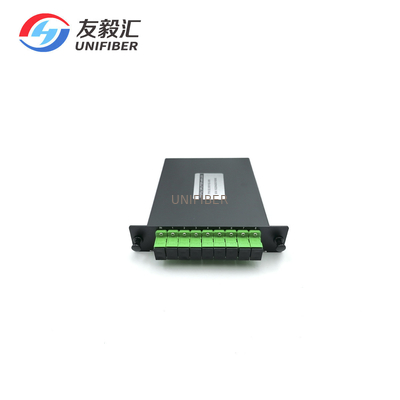

| Product: | 1x8 SC/APC Metal LGX Cassette PLC Splitter | Connector: | SC/APC |
|---|---|---|---|
| Cassette Material: | Cold Rolled Steel | Splitter: | 1x8 Plc Splitter |
| Cassette Color: | Black | Application: | GPON FTTx Networks |
| High Light: | 1260nm Optical PLC Splitter,1x8 Optical PLC Splitter,Cassette Fiber Optic Splitter |
||
Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability
| Parameter | Unit | Specification (P Grade) | |||
| Operation Wavelength | nm | 1260~1650 | |||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 |
| Return Loss | dB | ≥45(PC);50(UPC);60(APC) | |||
| Directivity | dB | ≥55 | |||
| Parameter | Unit | Specification (P Grade) | |||
| Operation Wavelength | nm | 1260~1650 | |||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 |
| Return Loss | dB | ≥45(PC);50(UPC);60(APC) | |||
| Directivity | dB | ≥55 | |||
