Product Details:
Payment & Shipping Terms:
|
| Product: | Dome Fiber Splice Closure | Capacity: | 408 Core |
|---|---|---|---|
| Tray Capacity: | 12 Core | No Of Trays: | 34 |
| Style: | Dome/ Vertical | Material: | PP+GF |
| Sealing Type: | Mechanical (Heat Shrink Seal Interchangeable) | Protection Grade: | IP68 |
| High Light: | 408 core Dome Fiber Splice Closure,Mechanical Seal Dome Fiber Splice Closure,IP68 Dome Fiber Splice Closure |
||

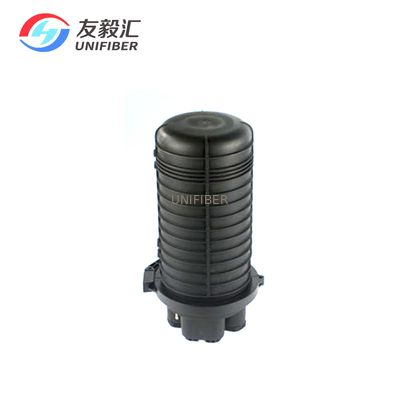

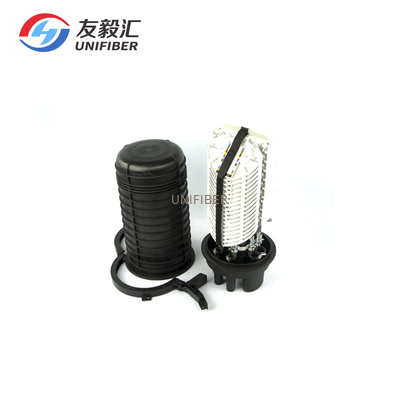

GPJ09-5805 dome closure is featuring the patented mechanical seal is designed for fiber connection, branching, distribution, and storage. The sealing performance is reliable. The installation of this fiber closure includes wall mount, pole mount, and manhole.
Feature:
Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 68.
Installation Method: wall-mounted, Pole-mounting,aerial,manhole
The design receives creatively practical patents and keep the box under sustainable seal performance in regular operations.
The port of discontinuous cable adopts spinning mechanical seal, and the port of uncut cable adopts direct pressure mechanical seal.
It applies to the seal demand of Φ10~17.5 cable,
The maximum capacity can be 408~576 core, easy in operation.
Box Material Modified polymer plastic
Appearance size (mm) 478×ф260/585×ф260
Seal Material Vualcanized silicone rubber
Weight(kg) 5.5～6.5/5.6～7
Specification
| Model No. | GPJ09-5805 | |||
| Style | Dome/ Vertical | |||
| Dimensions (mm) | 480 × Φ260 | |||
| Material | PP+GF | |||
| Sealing Type | Mechanical (Heat Shrink Seal Interchangeable) | |||
| Protection Grade | IP68 | |||

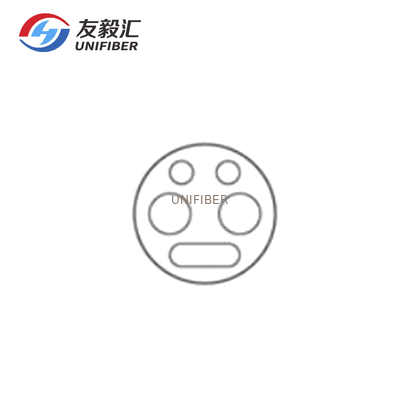

| Cable Ports | Uncut | Oval | 1 | Φ10 - Φ17.5 mm |
| Branch | Round | 2 | Φ10 - Φ17.5 mm | |
| 2 | Φ8 - Φ17.5 mm | |||
| Fiber Splice Capacity | Single | 408 | ||
| Tray Capacity | Single | 12 | ||
| Tray Count | 34 | |||
| Weight | 5.5 - 6.5 kg | |||
| Application | Wall Mounting/ Pole Mounting/ Manhole | |||
| Packing Type | Inner Carton | 480×275×245 mm (1 PCS) | ||
| Outer Carton | 570×500×540 mm (4 PCS) | |||
