Product Details:
Payment & Shipping Terms:
|
| Product: | 240 Core Pole Mount Dome Fiber Closure | Ports: | 1 Uncut (Ф10-25mm), 4/6 Branch (Ф10-25mm, Ф8-18mm) |
|---|---|---|---|
| Capacity: | 240 (single), 960/1920 (ribbon) | Seal: | Heat Shrink |
| Material: | PP+GF | Application: | Wall Mounting, Pole Mounting, Manhole, Underground |
| High Light: | Pole Mount Dome Fiber Closure,PP GF Dome Fiber Closure,240 Core Dome Fiber Closure |
||

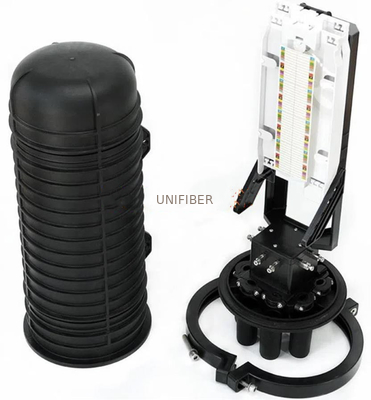

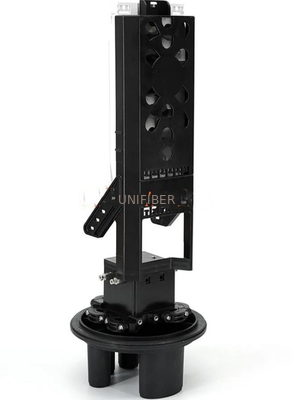

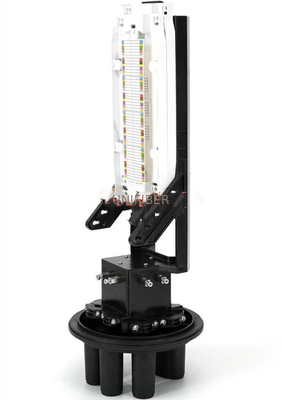

GPJ09-5808 dome closure features the splice tray protection design and two types of optical cable ports: 1+4 ports/ 1+6 ports. This fiber closure accommodates up to 5 trays, and the maximum fusion splice capacity for bundle cable is 48F each tray. The splice units are removable and interchangeable for both bundle and ribbon cables. The housing adopts the mechanical seal, and the ports employ the heat-shrink seal.
| Model No. | GPJ09-5808 | |||
| Style | Dome/ Vertical | |||
| Dimensions (mm) | 585 × Φ230 | |||
| Material | PP+GF | |||
| Sealing Type | Heat Shrink | |||
| Protection Grade | IP68 | |||
| Cable Ports | Uncut | Oval | 1 | Φ10 - Φ25 mm |
| Branch | Round | 4/ 6 | Φ10 - Φ25 mm | |
| Φ8 - Φ18 mm | ||||
| Fiber Splice Capacity | Single | 12 - 240 | ||
| Ribbon | 960/ 1920 | |||
| Tray Capacity | Single | 48 | ||
| Ribbon | 6/ 12 | |||
| Tray Count | 5 | |||
| Weight | 5.0 - 6.0 kg | |||
| Application | Wall Mounting/ Pole Mounting/ Manhole/ Underground | |||
| Packing Type | Inner Carton | 610×280×280 (1 PCS) | ||
| Outer Carton | 630×580×595 (4 PCS) | |||
