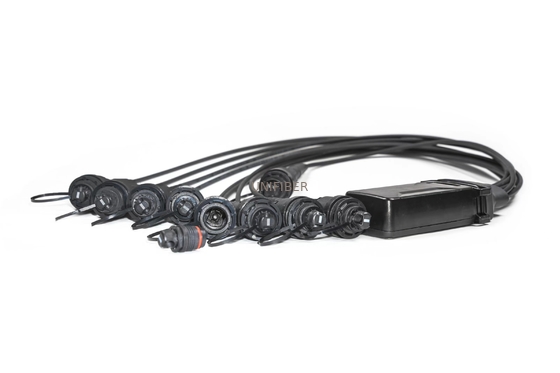

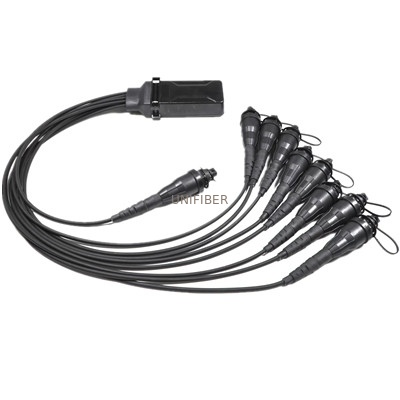

Product: | PLC Splitter With H Inline Female Connectors | Splitter Type: | 1*4 Or 1*8 |
---|---|---|---|
Connector Type: | H Inline Connector | Waterproof Grade: | IP67 |
Compatible: | Corning H Optitap | Application: | FTTH |
High Light: | Waterproof FTTH PLC splitter,IP67 FTTH PLC splitter,H Inline Fiber Optic Splitter |
The H inline connector end incorporates an SC/APC type connection within a female adapter on it , sealed, threaded polymer housing allowing easy connection to either a multi port terminal
Provides superior weather resistance for FTTA and other outdoor applications;
-Allows flexibility to use factory terminatedassemblies or pre-terminated or field installed assemblies;
-Suitable for FTTA and outdoor temperature extremes ;
-Ensuresfunctionality in harsh weather environments;
-Can be installs without special tooling ;
-Threaded style coupling ;
-Provides bend protection for installation and long term use.
-Compatible with Corning-OptiTap and H-Connector;
-Factory terminated for high performance;
Product name | H-Connector In-line Receptacle compatible with Corning Optitap |
Cable Type | dielectric or Tonable |
Cable diameter | 5.0mm round cable or 4.5*8.1mm flat cable or 4.5*9.8mm toneable cable |
Application | Aerial , Direct Buried , Duct |
Termination | Both end or one end |
Specifications - Connector A | |
Reflectance, Typical | -65 dB |
Insertion Loss, Typical | ≤ 0.15 dB |
Connector Type | Female OptiTap connector(H-Connector In-line Receptacle) |
Specifications - Connector B | |
Reflectance, Typical | -65 dB |
Insertion Loss, Typical | ≤ 0.15 dB |
Connector Type | None or Hardend male Optitap/male H-connector |
Optical Characteristics | |
Fiber Type | Single-mode |
Fiber count | 1F |
Fiber Category | G.652.D |
Wavelengths | 1310 nm / 1550 nm |
Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
