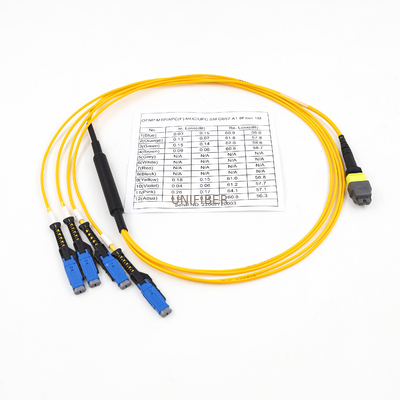

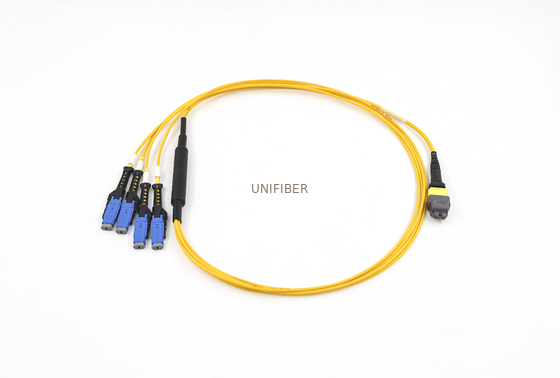

Os2 9/125 Single Mode Breakout Cable 4 Mdc Upc Duplex To Mtp-8 Elite Polarity B

Large Image : Os2 9/125 Single Mode Breakout Cable 4 Mdc Upc Duplex To Mtp-8 Elite Polarity B

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	4 MDC UPC Duplex to MTP-8 Elite Breakout Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	4 MDC UPC Duplex To MTP-8 Elite Breakout Cable	Fiber Counts:	8/12/24
Connector:	MDC-MTP	Color:	Green/Aqua/Purple
Fiber:	SM/MM	Length:	Customized
Application:	Data Center Solution
High Light:	os2 single mode breakout cable , polarity b single mode breakout cable

MTP® to MDC breakout cable enables one QSFP-DD, QSFP28 or QSFP+ transceiver to be connected to MDC patch panels or cassettes. With MDC, the port density can be tripled compared to LC duplex per 19" height unit and thus decisively save space in the rack.

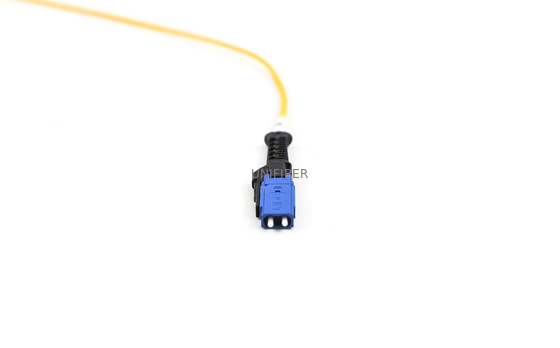

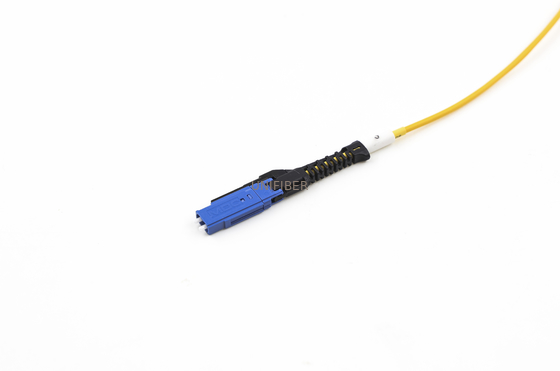

The MDC connector (Figure 2.1) is a very small form factor optical connector designed to provide (4) separate two-fiber
connections into a QSFP-DD module and (2) separate two-fiber connections into a SFP-DD module. A push-pull boot allows for simple insertion (and removal) of the MDC connectors to (and from) the receptacles. The MDC connector contains (2) 1.25 mm diameter ferrules and will be installed on 2.0 mm OD (or less) optical cables

Feature
•Two 1.25mm ferrules in one connector housing
• Push-pull boot for connector insertion and extraction
• Simple polarity reversal with no exposed fibers
• Meets IEC 61735-1 Grade B insertion loss requirements
• Telcordia GR-326 and TIA-568 compliant
• Designed for cables up to 2.0mm OD
• MM, SM and SM APC available
• 3x fiber cabling density over LC

Item	Parameter
Connector Type A	US Conec MTP® Female (No pins). Low loss 0.35dB Max (0.15dB Typ.)
Connector Type B	US Conec MDC UPC
Fiber Type	SM/MM or 8/12Cores
Cable Diameter	3.0mm
Fan-Out Diameter	2.0mm
Fan-out Length	24inch (60.96cm)
Outer Jacket	LSZH/OFNP

Os2 9/125 Single Mode Breakout Cable 4 Mdc Upc Duplex To Mtp-8 Elite Polarity B 0
