| High Light: | 12 ports mpo cassette module,ultra high density mpo cassette module,8 ports mtp cassette module |
||
|---|---|---|---|

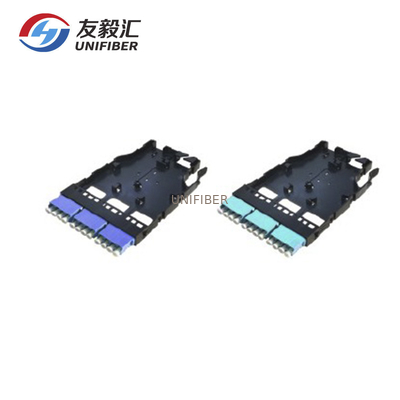

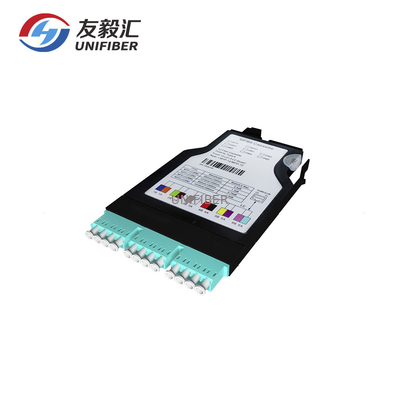

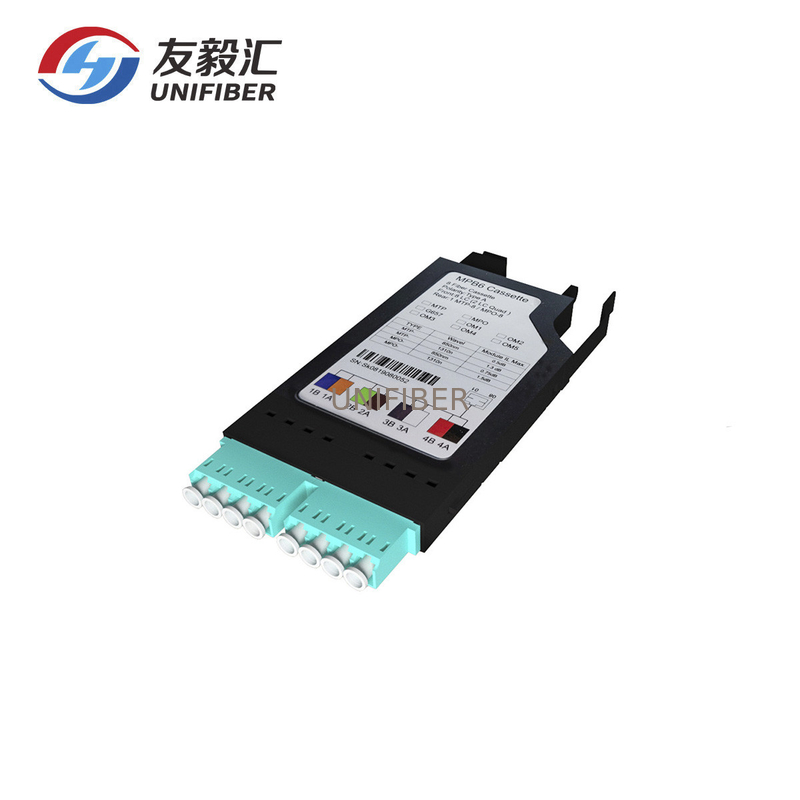

Ultra high density fiber optic MTP-LC cassettes consist of preterminated LC adapters, provide efficient utilization of rack space and design flexibility, offer a wide array of deployment options to support both Ethernet and Fiber Channel, it is specially designed to optimize fiber optic cable management, plug and play, rapid deployment, and increase flexibility and manageability to reduce installation costs. the MPO connection at the rear of the cassette provides a high degree of flexibility, because the transition module can be easily upgraded to MPO conversion or splicing module at a later stage, which allows users to upgrade from 10G data rate (serial optical) to 40G or 100G data rate (Parallel Optics).
Product Features
MTP to 8LC/12LC Transition
MTP/MPO-MTP/MPO conversion
MTP/MPO/LC patching
Pigtail splicing
Applications
Data center and infrastructure.
Storage area network.
Fibre Channel.
Specification
|
Connector Type
|
8/12 ports ultra high density mpo mtp cassette module MPB6
|
|
Polish
|
PC(MM); APC(SM)
|
|
Wavelength
|
MM:850nm/1300nm; SM:1310nm/1550nm
|
|
Fiber category
|
OS2 - 9/125µm; OM3/4/5 - 50/125 µm
|
|
Insertion loss, max. (MTP/MPO)
|
Single mode OS2 ≤0.50dB max Multimode OM3/OM4 ≤0.50dB max
|
|
Return loss (MTP/MPO SM)
|
PC >55dB; APC> 60dB
|
|
Insertion Loss, Typical (LC/SC)
|
≤ 0.10 dB
|
|
Insertion loss, max. (LC/SC)
|
≤ 0.3 dB
|
|
Adapter
|
LC Quad
|
|
Material / color
|
ABS/Black
|
