Product Details:
Payment & Shipping Terms:
|
| Product: | MPO Trunk Cable Patch Cord | No Of Fibers: | 96 Core |
|---|---|---|---|
| Fiber Mode: | OM4 | Polarity: | Type B |
| Color: | Magenta | Jacket: | LSZH Or OFNP |
| Highlight: | 96 core mpo trunk cable,female type b mpo trunk cable,multimode om4 mtp cable |
||

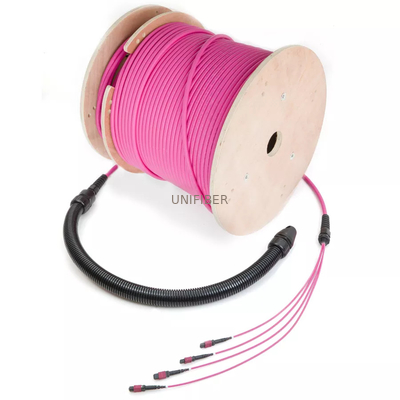

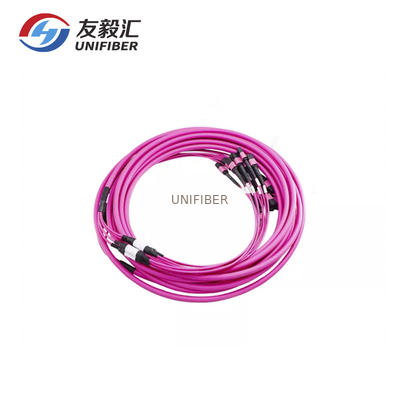

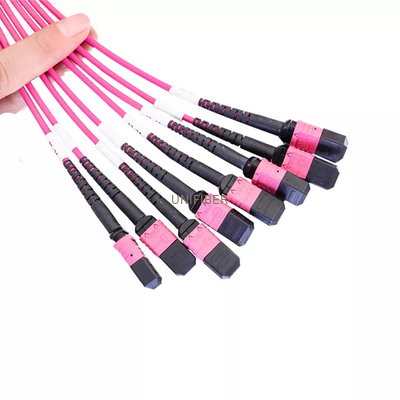

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Features
Backbone installation
100% tested before delivery
MTP And MPO available
Use 12/24 Cores Fiber Connector
Trunk Cable Counts usually 12 / 24 / 36 / 48 / 72 /96 / 144-fibers
3.0/3.6 mm Round Cable or Customized
SM/OM1/OM2/OM3/OM4 or Customized
LSZH, OFNR, OFNP available
Compliance with Telcordia GR-1435-Core Compliant
Specification
| Performance Level | Standard Loss | Low Loss | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
