Product Details:
Payment & Shipping Terms:
|
| Product: | Push-fit Straight Microduct Connector | IP Rate: | IP68 |
|---|---|---|---|
| Temp Resistance: | -20~ +50℃ | Seal: | NBR |
| Lock Claws: | SUS | Sleeve: | Polyacetal |
| Pressure Resistance: | 25 Bar | ||
| High Light: | push fit straight microduct connector,ip68 microduct connector |
||

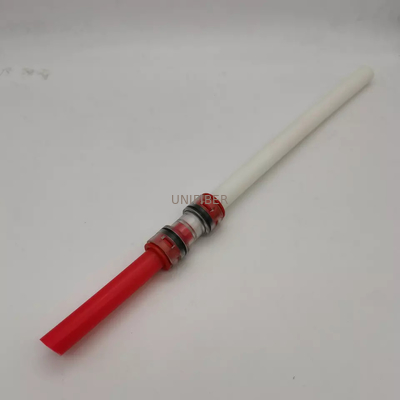

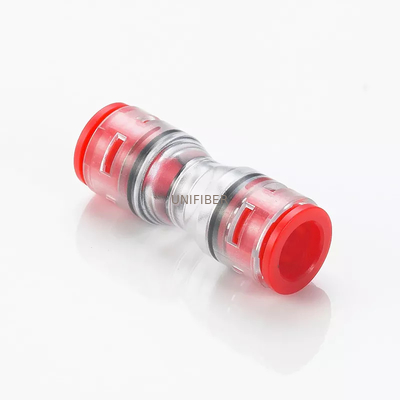

The design of the connector incorporates pressure tight seals with O-rings and internal steel teeth that prevents accidental separation of the connector from the microduct once installed.Removal of the duct is achieved by pushing the green collet inwards.To increase crush resistance when installed direct buried, an external plastic cover is used. The cover prevent the accidental release of collets during installation and provide protection and impact resistance in use.
Application
The connectors and end caps for microducts provide a quick, easy and secure connection or water sealing of microducts.

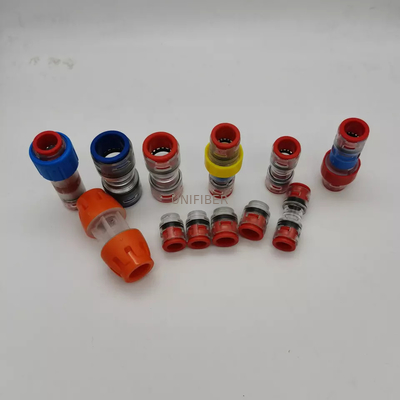

The product comes in three different versions:
* Straight Connectors are used to join sections of microducts
* Reducer Connectors are used to join microducts of different dimensions
* End Stops are used to block open duct ends and prevent water and dirt from entering the microduct
For installation directly into the ground, use versions with external cover.
The connectors are tested for best functionality in combination with the air blown fibers, nano cables and micro cables.
|
Material
|
|||
|
Body:
|
polycarbonate
|
Seal:
|
NBR
|
|
Washer:
|
polyacetal
|
Lock Claws:
|
SUS
|
|
Collar:
|
polyacetal
|
Sleeve:
|
polyacetal
|
|
Sizes & Specifications
|
||
|
Size
|
Microduct OD/ID, mm
|
THR Bore
|
|
STR3/2.1
|
3/2.1
|
2.1
|
|
STR4/2.5
|
4/2.5
|
2.5
|
|
STR5/2.1
|
5/2.1
|
2.1
|
|
STR5/3.5
|
5/3.5
|
3.5
|
|
STR6/4
|
6/4
|
4
|
|
STR7/3.5
|
7/3.5
|
3.5
|
|
STR7/4
|
7/4
|
4
|
|
STR8/4
|
8/4
|
4
|
|
STR8/5
|
8/5
|
5
|
|
STR8/6
|
8/6
|
6
|
|
STR10/6
|
10/6
|
6
|
|
STR10/8
|
10/8
|
8
|
|
STR12/8
|
12/8
|
8
|
|
STR12/10
|
12/10
|
10
|
|
STR14/10
|
14/10
|
10
|
|
STR14/12
|
14/12
|
12
|
|
STR16/12
|
16/12
|
12
|
|
STR16/14
|
16/14
|
14
|
|
STR18/12
|
18/12
|
12
|
|
STR18/14
|
18/14
|
14
|
|
STR20/16
|
20/16
|
16
|
|
STR22/18
|
22/18
|
18
|
