Product: | Invisible TAC Fiber | Fiber Type: | G657B3 |
---|---|---|---|
Outer Diameter: | 1.1mm | Color: | Colorless And Transparent |
Hot Melt Adhesive Thickness: | HDPE | Jacket Maerial: | Nylon / PVC |
Application: | FTTR FTTH | ||
High Light: | g657b3 tac fiber,ftth tac fiber |

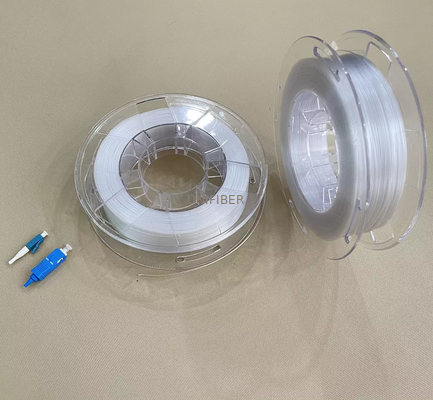

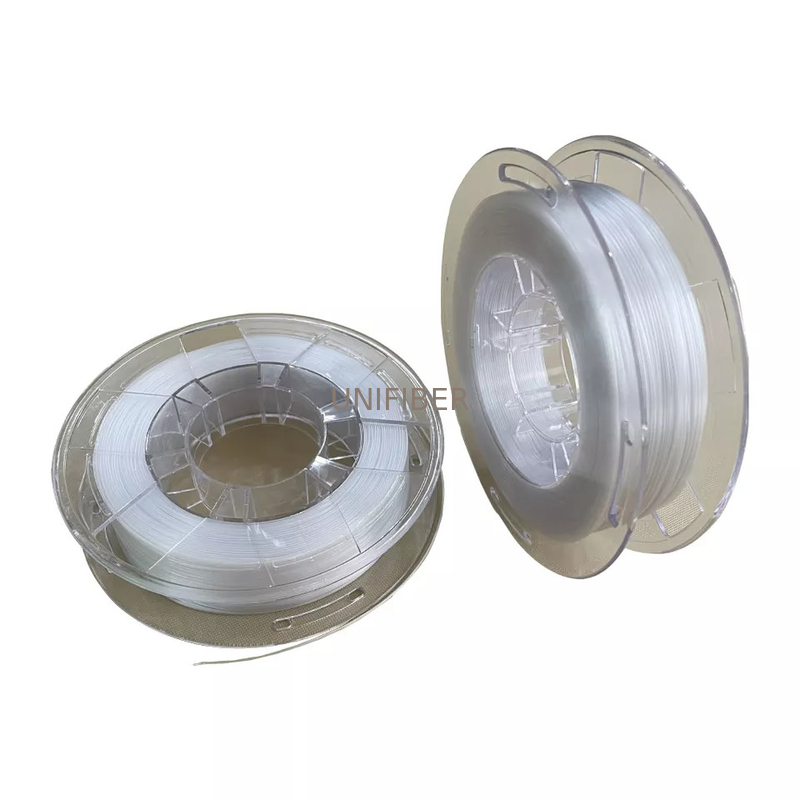

Invisible cable is transparent hot melt adhesive coated cable.It is G657B3 fiber, nylon / PVC as the main raw material.The outer cover layer of hot melt adhesive,It is step out of layers using the extrusion process,The nominal diameter is generally 1.1mm (outer diameter error +1).
Invisible Fiber Application
Invisible cable Applications are covered wire cable home user does not accept applications or solve the difficult problem of home users, the use of fiber is the minimum bend radius of 5mm G657B3 optical fiber, optical fiber can be fully compatible with the G652D.
Laying without playing in the way of the nails, do stand, drilling, pipelines do, destroy the original interior structure, or because the laying of fiber optic cable will cause discontinuities sagging, loss and other security risks, and because the cable almost transparent
So it will not affect the interior beautiful, construction is simple, just a hand-held heating installation tool can be done laying.
Cable cross-sectional view and Hand-held heating installation tool figure
Figure 1 Cable cross-sectional view
Figure 2 Hand-held heating installation tool
Invisible Fiber cable Optic Fiber Cable
The outer diameter:1.1 mm
The outer diameter of Tight outer cover:0.8 mm,
Hot melt adhesive thickness:0.15 mm
Chromatogram: Colorless and Transparent
Any cross-section of invisible cable should be uniform, without pores or blemishes. Besides ,its outer surface is smooth, no obvious defects such as cracks other.
Installation temperature range:-30℃~50℃ ( -22℉~122℉)
Using temperature range:-40℃~75℃ (-40℉~167℉)
Hand-held heating installation tool
Size:Length 190mm
Weight:100g
