Product Details:
Payment & Shipping Terms:
|

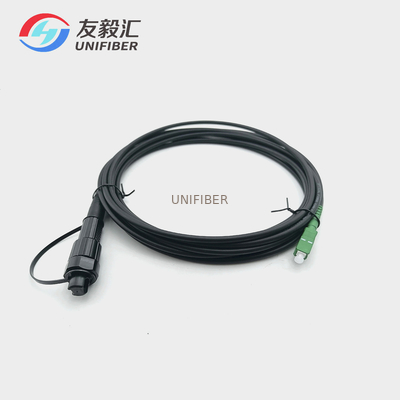

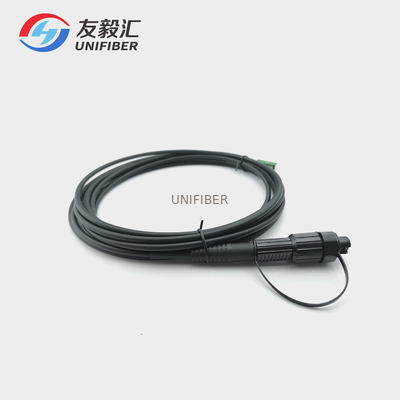

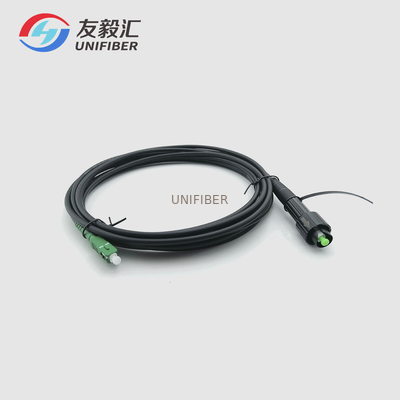

| Product: | Huawei Mini SC To SC/APC Pre Connectorized Fiber Drop Cable | Connector: | Huawei Mini SC To SC/APC |
|---|---|---|---|
| Cable Type: | 5.0mm Round Drop Cable | Fiber Type: | G657A2 |
| Jacket: | LSZH | Application: | FTTH |
| Highlight: | pre connectorized optical fiber drop cable,150m optical fiber drop cable,1m ftth fiber drop cable |
||
Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.This connector always come with 2.0*3.0mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable.UNIFIBER also provide another mini SC connector with Corning Optitap connector compatiable.
Application:
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring projectFiber optic communications in harsh outdoor environments
Features:
Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment ·
Chemical Resistance
|
Application
|
Aerial, Direct Buried, Duct
|
|
Cable Type
|
Outdoor Cable
|
|
Fiber Type
|
G657A1/G657A2/G657B3, customized
|
|
Termination
|
One end or both ends
|
|
Product Type
|
Drop Assemblies
|
|
Connector A
|
Huawei Mini SC APC Connector
|
|
Connector B
|
No connector, SC APC or Huawei Mini SC APC Connector
|
|
Cable Length
|
Customized
|
|
Operation Temperature
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Insertion Loss
|
≤0.2dB
|
|
Return Loss
|
≥55dB
|
