Product Details:
Payment & Shipping Terms:
|
| Product: | TW Hybrid Fast Connector | Compatible Connector: | Huawei Mini SC /Corning Optitap / H Connector |
|---|---|---|---|
| Fiber: | G657A2 | Jacket: | LSZH |
| Cable Diameter: | 5.0mm Round Drop Cable Or Figure 8 Drop Cable | Application: | FTTH |
| High Light: | G657A2 TW Hybrid Fast Connector,LSZH TW Hybrid Fast Connector,Pre Connectorized TW Hybrid Fast Connector |
||

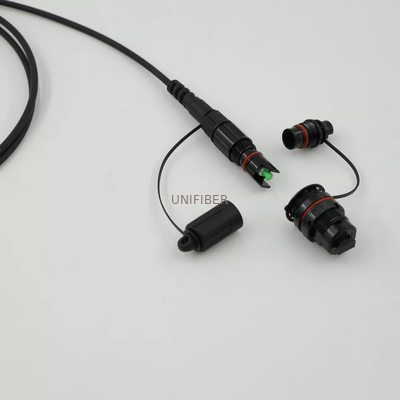

TW Hybrid connector combines T and W outdoor harsh environment connectors together. It can mate wih Corning OptiTap adapter and Huawei mini SC adapter. TW hybrid connector makes change different connecting method in field possible. TW cable assemblies provide the most cost effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. TW hybrid connector guarantees an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. It provides quick installation solutions and has good performance on mating with Corning OptiTap adapter and Huawei mini SC adapter. Cable can be 5.0mm round and Fig.8 drop type.
Features

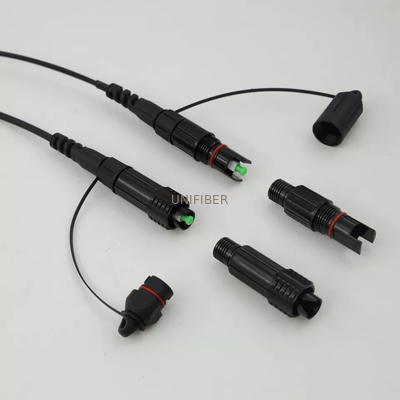

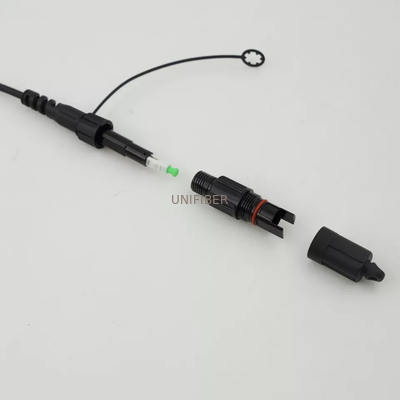

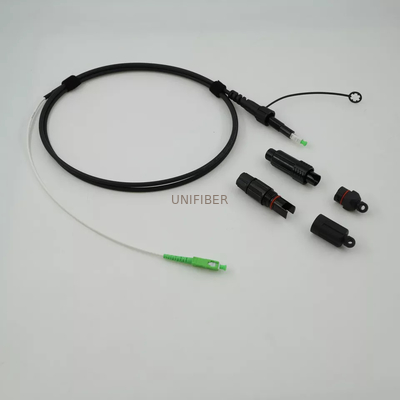

The product consists of the main connector and the adapters, which is suitable for connect Huawei FAST adapter and Corning OPT adapter
Connector inner low loss parts conforms to the SC-APC standard of IEC61754-4
Suitable for outdoor installation, with the functions of waterproof, dustproof and corrosion resistance
Suitable for 5.0mm round and Fig.8 drop type
Application
FTTx ISP Project.
Waterproof Fiber Equipment.
Remote wireless Base Station.
Outdoor communication equipment connection.
Fiber optic communications in harsh outdoor environments.
Specification
| Application cable | 3.0mm 5.0mm Round drop cable,2.0*3.0mm 2.0*5.0mm figure-8 fiber cable. |
| IL( dB) | ≤0.15dB(Typical value) ≤0.3dB(maximum value) |
| RL( dB) | ≥60 dB |
| Mechanical durability | 50 times IL≤0.3dB |
| Tensile strength | ≥200N |
| Operating temperature | -25℃+85℃ |
| Waterproof level | IP68 |
