Product Details:
Payment & Shipping Terms:
|
| Product: | NSN Flexible Duplex LC CPRI Fiber Patch Cord | Fiber Counts: | 2 Fiber |
|---|---|---|---|
| Fiber Type: | Multimode OM2 | Cable Diameter: | 7.0mm |
| Connector: | Duplex LC/UPC With NSN Boot | Length: | 10/30/50/70m Or Customized |
| High Light: | OM2 NSN patch cord,LC UPC NSN patch cord,Outdoor CPRI Fiber Cable Assembly |
||
Description of Multimode OM2 NSN Flexible Duplex LC/UPC FTTA CPRI Fiber Cable Assemblies
This NSN patch cord compatible with Nokia equipment for next-generation of telecommunication systems, it deploy fiber-optic feeders to link the telecom tower base station with the remote unit at the antenna mast. Unifiber supply NSN fiber patch cords for single mode or multimode with different lengths required.
Features
IP67 water and dust protection
Easy, reliable and cost-effective installation
Easily add/install jumper cables for a future expansion
Factory-assembled cables for a fast on-site installation
Flexibility with small bending radius and excellent cable routing properties
|
Name
|
Product code
|
Length
|
Cable label
|
Usage
|
Notes
|
|
FUFAS MM OD fiber LC
OD-LC OD dual 2 m |
473288A
|
2 m (6.6 ft)
|
995741
|
OM2 - RFM/RRH
|
MM, LC dual OD IP-LC OD IP
dual, HF,OM2 Flexible ended |
|
FUFAR MM OD fiber LC
OD-LC OD dual 5 m |
473287A
|
5 m (16.4 ft)
|
995740
|
||
|
FUFBC MM OD fiber LC
OD-LC OD dual 10 m |
473305A
|
10 m (32.8 ft)
|
995758
|
||
|
FUFBA MM OD fiber LC
OD-LC OD dual 30 m |
473303A
|
30 m (98.4 ft)
|
995756
|
||
|
FUFBB MM OD fiber LC
OD-LC OD dual 50 m |
473304A
|
50 m (164 ft)
|
995757
|
||
|
FUFAY MM OD fiber LC
OD-LC OD dual 100 m |
473302A
|
100 m (328.1 ft)
|
995755
|
||
|
FUFBD MM OD fiber LC
OD-LC OD dual 200 m |
473306A
|
200 m (656.2 ft)
|
995759
|

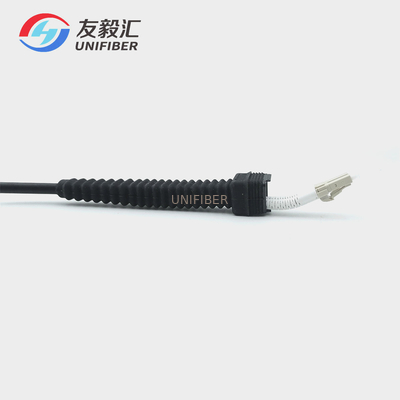

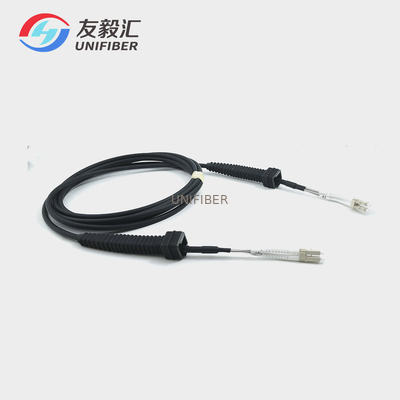

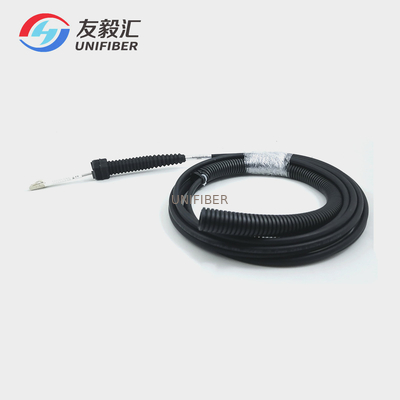

Picture of Multimode OM2 NSN Flexible Duplex LC/UPC CPRI Patch Cord
