Product Details:
Payment & Shipping Terms:
|
| Product: | ASU Fiber Optic Cable | Fiber Counts: | 12 Core |
|---|---|---|---|
| Fiber Type: | G652D | Jacket Material: | Black Polyethylene (PE) |
| Cable Structure: | Uni-Loose Tube Non Armor | Strength Member: | Dielectric Member (FRP) |
| Application: | Outdoor Aerial | ||
| High Light: | ASU Fiber Optic Cable,G652D Fiber Optic Cable,Outdoor Aerial Bulk Fiber Optic Cable |
||
Description of 12 Core ASU Cable de Fibra Optica G652D 80m/100m/120m Span
ASU optical fiber cable is one loose tube stranded. Fibers, 250um , are positioned into a loose tube made of high modulus plastics. Two FRP (Fiber Reinforced Plastic) as as strengthen member. Cable surface is extruded with HDPE (polyethylene) sheath.
Features
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound

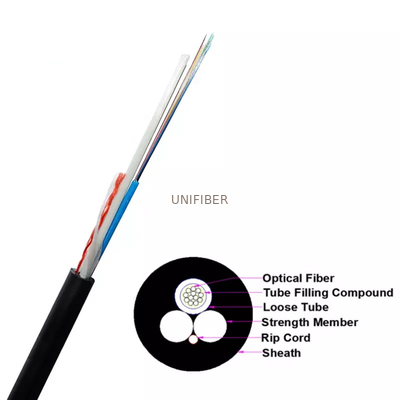

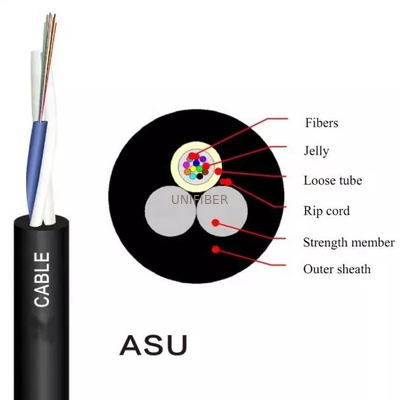

Cable Structure
Specification
|
Number of fiber
|
1-12 core
|
|
Fiber Type
|
SM G652D
|
|
Loose Tube
|
PBT
|
|
Water Blocking System
|
Filling gel
|
|
Strength member
|
TWO FRP(2*2mm)
|
|
Span
|
80m/120m
|
|
Out sheath
|
MDPE/HDPE
|

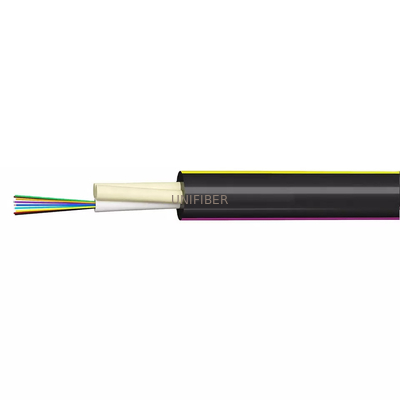

Picture of ASU cable de fibra optica mini ADSS G652D fiber cable
