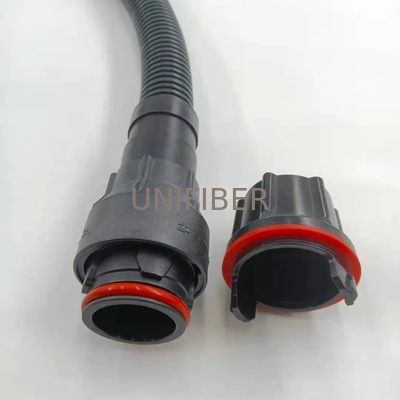

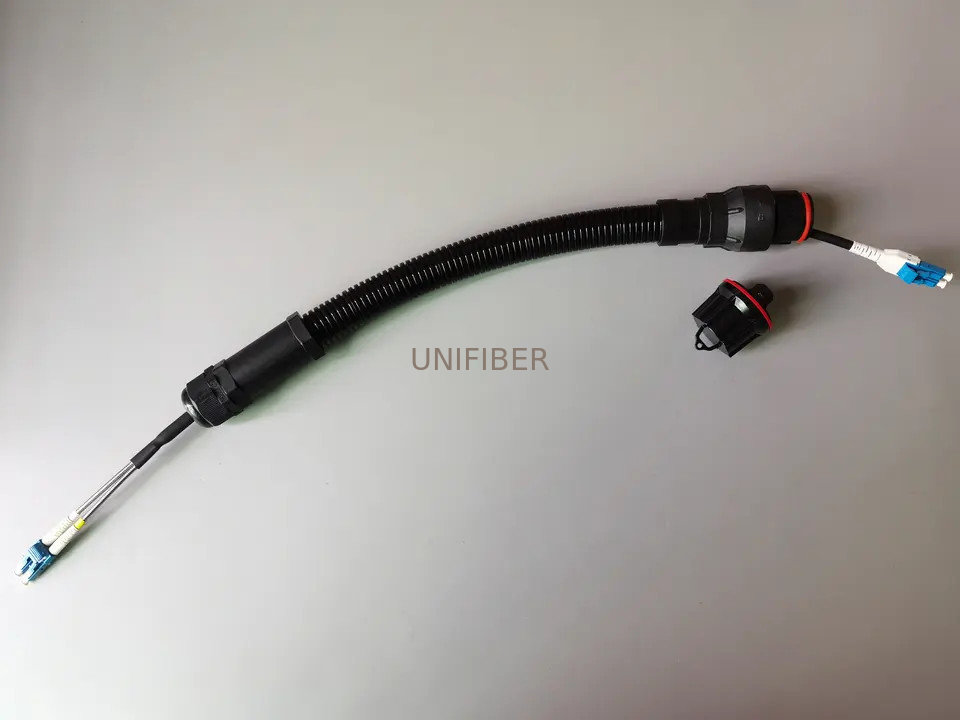

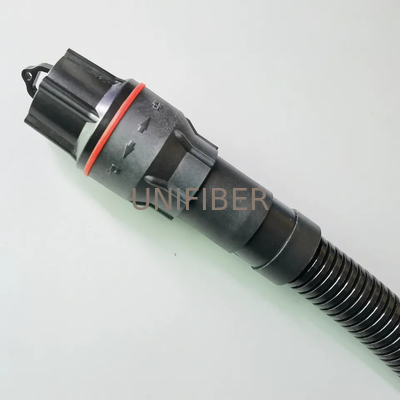

Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube

Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube
Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube

Large Image :  Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: Fullaxs LC Cable Assembly
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
Detailed Product Description
Product: Fullaxs LC Duplex Fiber Patch Cord Connector: Fullaxs To DLC
Fiber Type: Single Mode G657A2 Cable Diameter: 5.0mm
Outer ODr: 21.2mm Pipe Tube Type: M22 PG Gland Extension Tube
High Light:

Fullaxs LC Fiber Cable Assembly

,

Ruggedized Fiber Cable Assembly

,

G657A2 Fiber Patch Cord

Ruggedized sealing system Full AXS Field Installation Kit Useable for LC Duplex, RJ45, Robust bayonet locking



Features
Ruggedized sealing system for fiber-to-the antenna and industrial application
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
Useable for LC Duplex, RJ45, Power
Robust bayonet locking for easy, fast, and secure mating
Water proof (IP 65), dust proof and corrosion resistant



Application
WiMAX and LTE Base Stations;
Remote Radio Heads (RRH);
Industrial outdoor applications;
Robotics;
Aerospace & Defense.



Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube 0

No. of cable
2
Fiber Model
G.657A2
Strength Member
Material
Aramid yarn
Tight buffer
Material
PVC
Diameter(±0.06)mm
0.9
Thickness(±0.03)mm
0.32
Outer Sheath
Material
LSZH
Thickness(±0.2)mm
1.0
Cable Diameter(±0.2)mm
5.0
Cable Weight(±5)kg/km
28
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70





Insertion loss
≤0.5dB
Return loss
SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB
Mechanical life
500cycles
Working temperature
-40°C~+70°C
Storage temperature
-40°C~+70°C
Operating temperature
-10°C~+50°C
Protection Level
IP67
Tensile Data
Tensile between junction and fiber cable≥100N
Authentication
Meet with RoHS

Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube 1
