Product Details:
Payment & Shipping Terms:
|
| Product: | MTP/MTP Trunk Patch Cable | Fiber Cores: | 12 Core |
|---|---|---|---|
| Fiber Type: | Multimode OM5 | Polarity: | Type B |
| Length: | 1/3/5 Or Customized | Application: | Data Center |
| Highlight: | OM5 MPO MTP Patch Cord,High RL MPO MTP Patch Cord,MPO MTP Fiber Optic Trunk Cable |
||
Description of 8/12 core OM5 MTP to MTP Elite Trunk Patch Cord Type B
MPO/MTP trunk cable patch cord is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. the trunk cable ends are terminated with 8-fiber, 12-fiber or 24-fiber per customer's actual application, they are available with 12, 24, 48 and 72 fibers. it's a good choice for 40G/100G direct connection and high-density data center applications.
Features
Low IL& High RL
High reliability & Good stability
8/12/24 Fiber for options
1/3/5/7 or other customized length avaliable
OEM brand support
Specification
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||

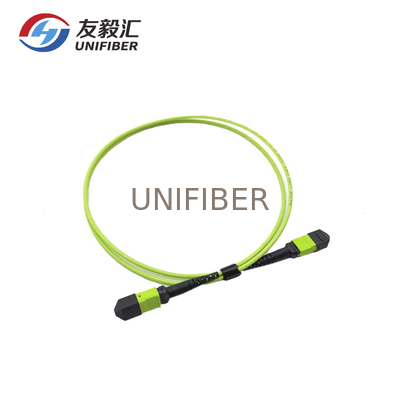

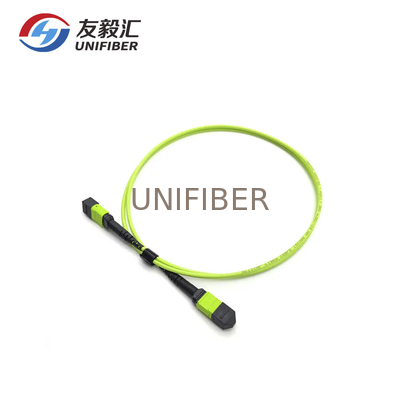

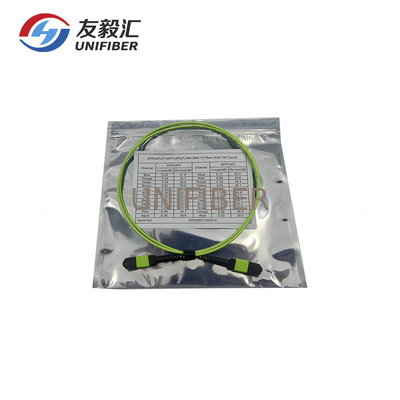

Picture of 8/12/24 Fiber Multimode OM5 MPO/MTP Trunk Cable Type B 3m
