Product Details:
Payment & Shipping Terms:
|
| Products: | Polarization Maintaining Fiber Optic Patch Cord | Key Orientation: | Slow Axis Working |
|---|---|---|---|
| Wavelength: | 1310nm Or 1550nm | Length: | 1m |
| Fiber Type: | PM Panda Fiber | Cable Diameter: | 3.0mm Loose Tube |
1310m/1550nm Polarization Maintaining Fiber Optic Patch Cord based on a high precision butt-style connection technique. The PM fiber optical cable with orthogonal “slow” and “fast” axis with different propagation constants. the connector usually to be made as FC/APC, SC/APC or LC/APC based on the specifc request.
Application
test and instrumentation system
optical fiber sensing measurement
fiber optic gyroscope
laser Doppler
Features
Low insertion Loss
High Return Loss
High Extinction Ratio
Specification
| Parameter | Unit | Value | ||||
| Connector Type | FC/UPC, SC/UPC,LC/UPC,MU/UPC, FC/APC, SC/APC,LC/APC | |||||
| Wavelength | nm | 1310, 1550 | 980, 1060 | 850 | 780 | |
| Insertion Loss | dB | ≤0.3 | ≤0.5 | ≤0.8 | ≤0.8 | |
| Return | UPC Type | dB | ≥50 | |||
| Return | APC type | dB | ≥60 | |||
| Extinction Ratio at 23℃ | dB | ≥23 | ≥23 | ≥22 | ≥22 | |
| Fiber Type | PM1310,PM1550 | PM980 | PM850 | PM780 | ||
| Key Orientation | Slow Axis | |||||
| Axis Alignment | deg | ±3 | ||||
| Operating temperature | ℃ | -20~+70 | ||||
| Storage temperature | ℃ | -40~+80 | ||||

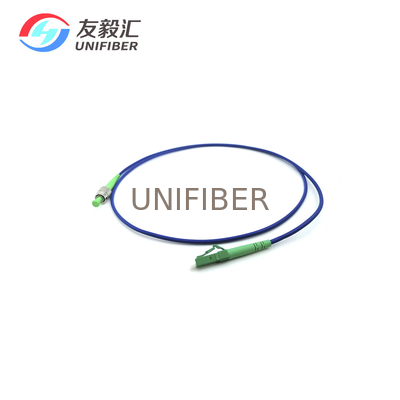

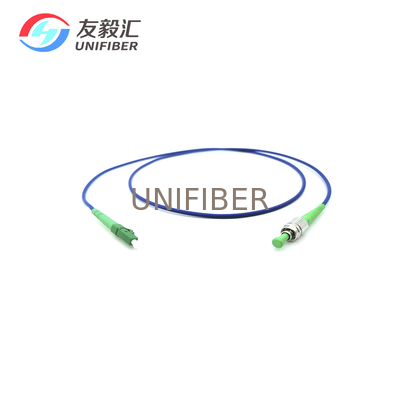

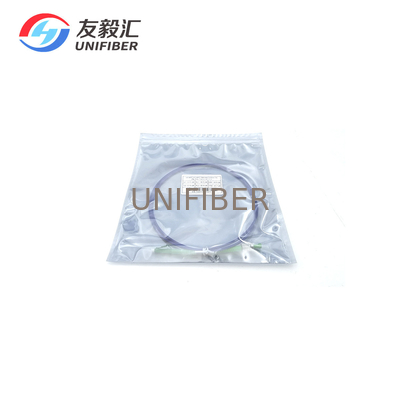

Picture of Polarization Maintaining Fiber Optic Patch Cord LC/APC To FC/APC
