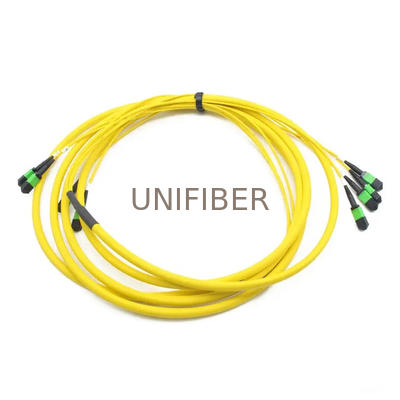

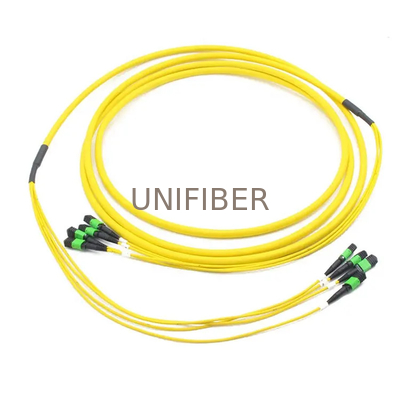

Data Center MPO/MTP Trunk Cable Patch Cord 48 core Single Mode Polarity B

Large Image : Data Center MPO/MTP Trunk Cable Patch Cord 48 core Single Mode Polarity B

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MPO MTP Trunk Cable Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	MPO MTP Fiber Trunk Cable	Polarity:	Type B
Connector:	MPO MTP-12F	Fiber Type:	Single Mode G652D
Fiber Counts:	48 Core	Fan-out:	3.0mm
Application:	Data Center

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.

Features:

100% pre-terminated and tested in factory

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications

Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F

Application:
Data communication network

High density architectures

Access network Storage area

Optical System

networking fiber channel

Technical Parameters:

Cable Type	12 Fiber	24 Fiber	48 Fiber	72 Fiber	144 Fiber
	1 Group	2 Groups	4 Groups	6 Groups	12 Groups
	12 Fibers per Group
Connector A	12 MPO Connector (Male or Female)
Connector A Count	1	2	4	6	12
	MPO/UPC or MPO/APC Connector
Connector A Breakout Length	Various Lengths
Connector B	12 Fiber MPO Connector (Male or Female)
Connector B Count	1	2	4	6	12
	MPO/UPC or MPO/APC Connector
Connector B Breakout Length	Various Lengths
Cable Jacket Type	Plenum (OFNP)
Total Cable Length	Various Lengths
Pin Out Configuration	Method A, B or C

Fiber Cable Characteristics:

Fiber Mode	Single Mode	Multimode
Fiber Mode	9-125um	OM1-62.5/125um OM2/OM3/OM4-50/125um
Insertion Loss	0.35dB Max (0.15dB Typ.)	0.35dB Max (0.15dB Typ.)
Return Loss	≥60dB	≥20dB
Cable Jacket Color	Yellow	Orange/Aqua/Magenta

Order Information:

Model	Description Please suggest cable color and length before order confirmation.	MOQ	Unit
MPO Trunk Patch Cord-SM-12	12 core SM MPO Trunk Patch Cord	10	pc
MPO Trunk Patch Cord-OM1-12	12 core OM1 MPO Trunk Patch Cord	10	pc
MPO Trunk Patch Cord-OM2-12	12 core OM2 MPO Trunk Patch Cord	10	pc
MPO Trunk Patch Cord-OM3-12	12 core OM3 MPO Trunk Patch Cord	10	pc
MPO Trunk Patch Cord-OM4-12	12 core OM4 MPO Trunk Patch Cord	10	pc
