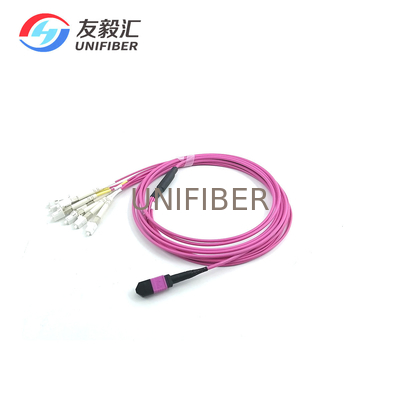

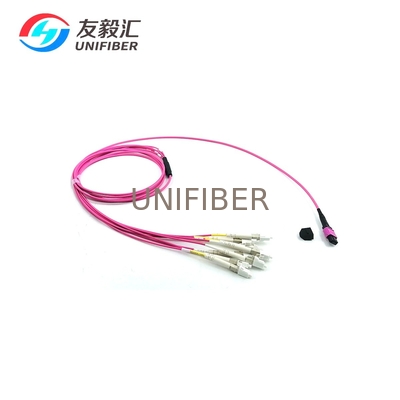

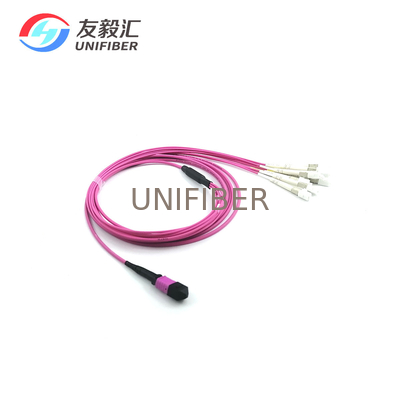

8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m

Large Image : 8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MPO to LC Breakout Patch Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Product:	MPO Patch Cord	Fiber Cores:	8 Core
Fiber Type:	Multimode OM4	Connector:	MPO Female
Jacket Color:	Violet	Jacket Material:	LSZH
Length:	Csutomized

UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Specification

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30
