Product Details:
Payment & Shipping Terms:
|
| Item: | CS To LC Uniboot Fiber Patch Cable | Connector A: | CS/UPC |
|---|---|---|---|
| Connector B: | Uniboot LC | Fiber Type: | SM G657A2 |
| Cable Diameter: | 2.0mm | Cable Jacket: | LSZH |
| Length: | 1/2/3/5M Or Customized |
The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand.
Features:
Double the density in patch panel compared to LC
Connector adopted by QSFP-DD, OSFP and COBO
40% size reduction compared to LC Duplex
Push/Pull tab for a better usability in high density applications
for a better usability in high density applications
Application
Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Specification

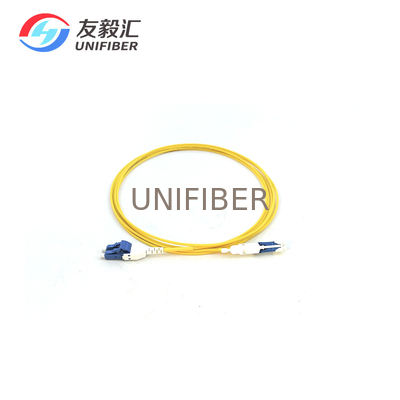

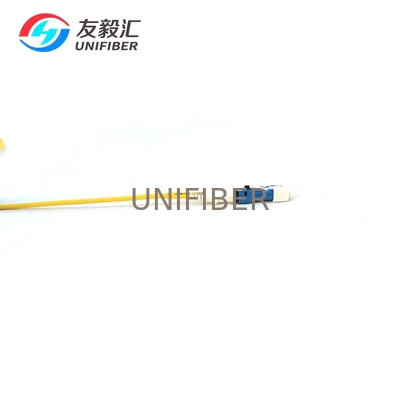

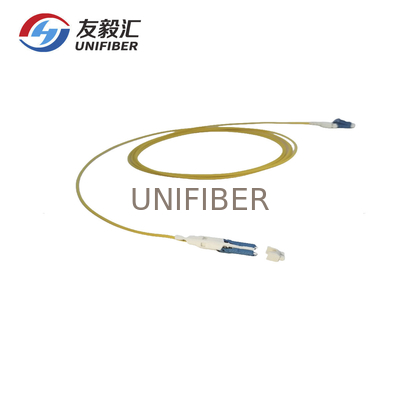

High-Density Solution CS to LC Uniboot Fiber Optical Patch Cord
