Product Details:
Payment & Shipping Terms:
|

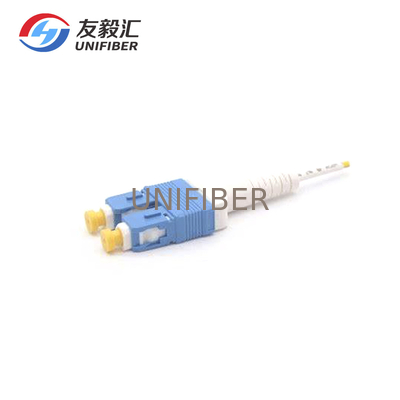

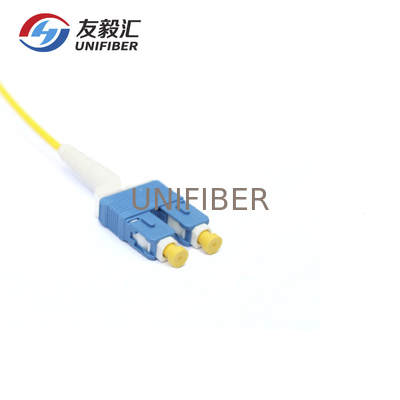

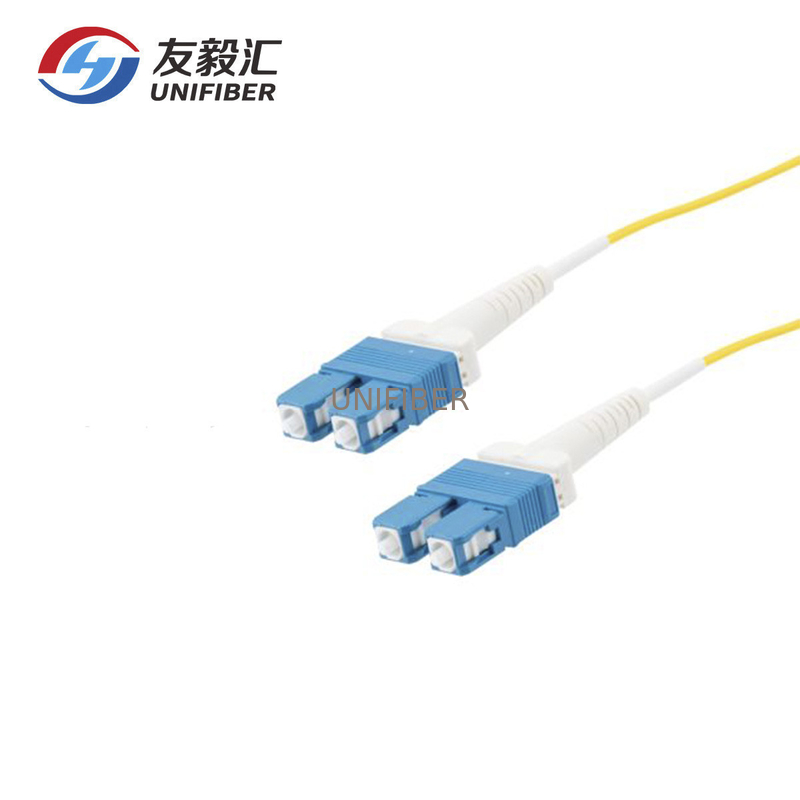

| Product: | SC Uniboot Fiber Patch Cable | Connector: | SC/UPC Uniboot |
|---|---|---|---|
| Fiber Type: | G657A2 | Cable Diameter: | 2.0 Mm |
| Length: | 1/3/5m Or Customized |
This SC Uniboot Connectors comes with a unique uniboot connector, which provides an integrated boot and clip design and also features a tool-less reversible polarity to work for any application your network requires. it feature a compact, lightweight design perfect for high-density applications. The durable stop-ring and crimp-ring structures provide a strong retention force to ensure continued high performance and stability.
Features:
Easy push-pull connect/disconnect design
Strong retention force
Application:
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTx
Specifiation
| rameter | SC Uniboot Fiber Patch Cord | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
