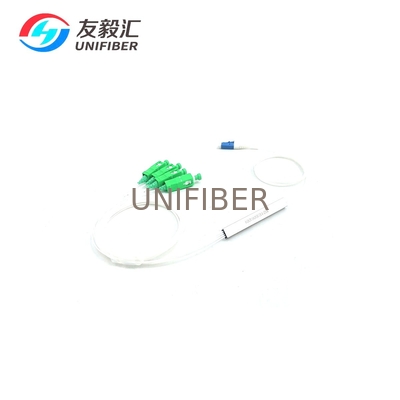

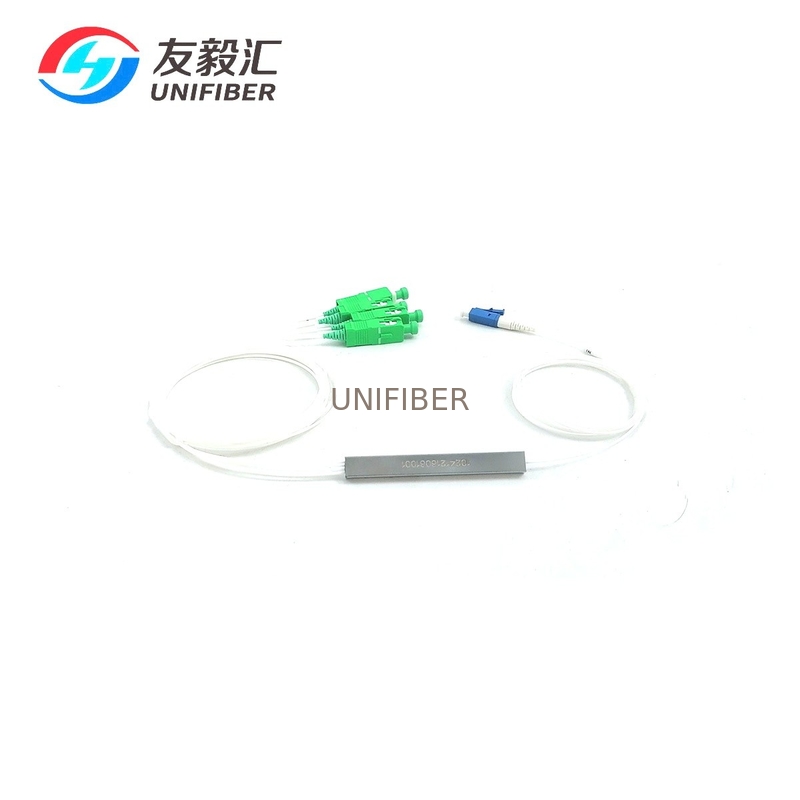

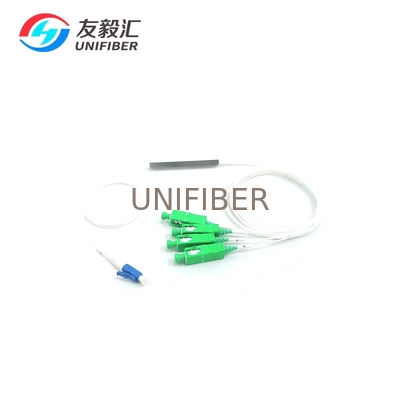

1x4 PM PLC Splitter 1310nm Slow Axis working SC/APC

Large Image : 1x4 PM PLC Splitter 1310nm Slow Axis working SC/APC

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	PM PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	1x4 PM PLC Splitter	Wavelength:	1310nm
Package:	Mini Steel Tube	Connector:	In LC/UPC Out SC/APC
Fiber Type:	1310 PM Panda Fiber	Configuration:	1x4

Polarization Maintaining Planar Lightwave Circuit (PLC) Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

Features

Excellent Environmental Stability
Excellent Mechanical
High Extinction Ratio
Low Polarization Dependent Loss
Good channel-to-channel uniformity

Application

FTTx Systems
EDFA & Raman Amplifier
Fiber Sensor
Fiber Optical Instrument
Power Monitoring System

Specification

Parameters	Specifications	Unit
Channel Number	1×4	/
Operation Wavelength	1310±30	nm
Test Wavelength	1310	nm
Insretion Loss1	≤7.2	dB
ER	≥18	dB
Uniformity	≤0.6	dB
Wavelength Dependent Loss	≤0.5	dB
Return Loss	≥50	dB
Directivity	≥55	dB
Fiber Type	1310 PM Panda Fiber	/
Pigtail	Input:0.9mm Loose Tube	/
Pigtail	Output:0.9mm Loose Tube	/
Casing color	White	/
Fiber length	1.0±0.05	m
Connector	Input:LC/UPC	/
Connector	Output:SC/APC	/
Package Dimension	L60xW7xH4	mm
Operation Temperature	-10 ~ +65	℃
Storage Temperature	-40 ~ +85	℃
