Product Details:
Payment & Shipping Terms:
|

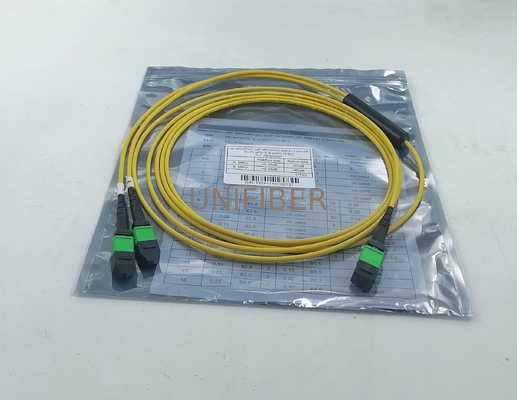

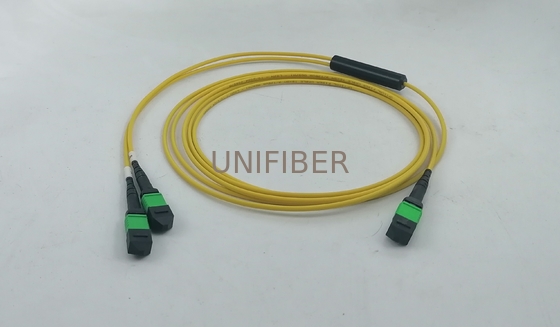

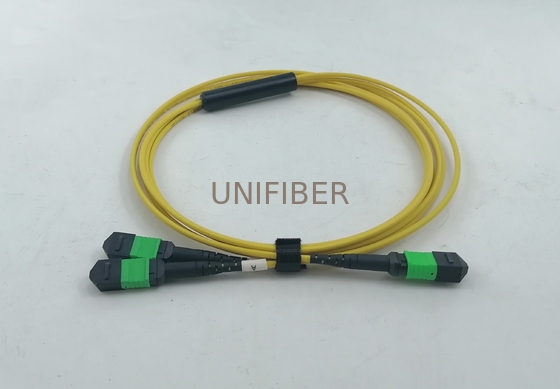

| Product: | MPO Fiber Optic Patch Cord | Connector: | MPO-16 Fiber |
|---|---|---|---|
| Fiber Type: | G657A2 | Cable Length: | 1/2/3/4/5m Or Others |
| Cable Diameter: | 3.0mm | Application: | Data Cente |
UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;
Features
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Application
SAN (Storage area Network)data center LAN
LAN/SAN switch equipment distribution area(EDA)
Emerging 40G and 100G protocol
Data Center Solution
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||||||||
| Polish | APC | PC | APC | PC | PC | PC | |||||||
| Insertion Loss(dB) | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 | ||||||
| Maximun | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |||||||
| Return Loss(dB) | 60 | 45 | 60 | 45 | 20 | 20 | |||||||
| Exchangeability(dB) | ≤0.3 | ||||||||||||
| Durability(dB) | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||||||||
| Tensile Strength(dB) | ≤0.3dB (Max 66N) | ||||||||||||
| Operating temperature(℃) | -20~+60 | ||||||||||||
| Storage temperature(℃) | -40~+80 | ||||||||||||
