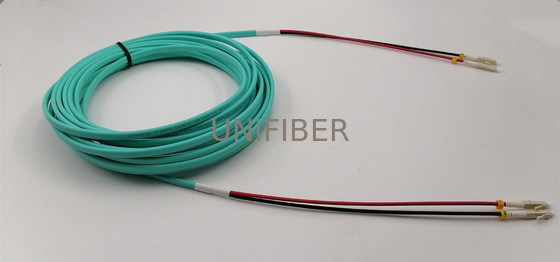

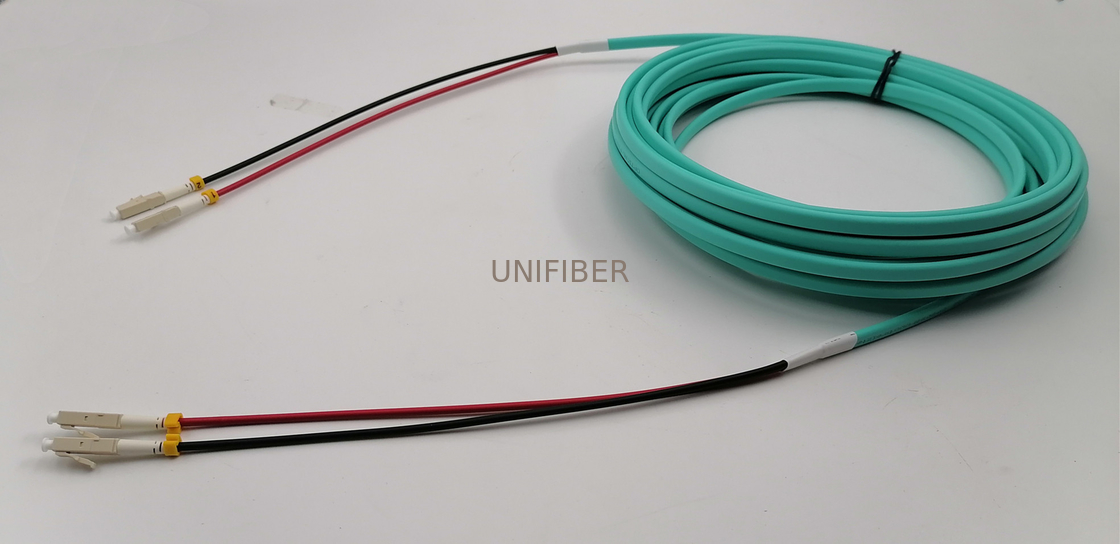

OM3/OM4 Multimode Flat Twin Ruggedised LC–LC Duplex Fiber Optic Patch Leads

Large Image : OM3/OM4 Multimode Flat Twin Ruggedised LC–LC Duplex Fiber Optic Patch Leads

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	Flat Twin Ruggedised LC Duplex Fibre Cables

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Products:	Flat Twin Ruggedised Duplex Fiber Patch Leads	Fiber Type:	OM3/OM4
Cable Type:	Flat Twin Ruggedised	Cable Jacket:	LSZH
Jacket Color:	Aqua	Connector:	LC To LC Duplex
Cable Length:	Customized

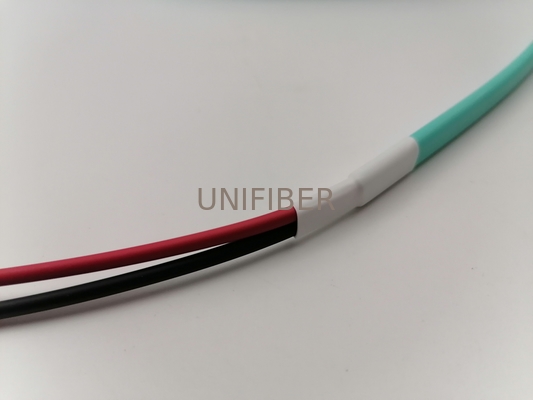

Flat twin ruggerdised fiber cables are manufactured using tight jacket cable with aramid yarn strength members and a LSZH jacket. More robust than normal patch leads, the flat twin ruggerdised patch leads are recommended when a slightly more robust patch link is required such as long cabinet to cabinet links or FTTD applications.

Features

Broad range of connectivity options

Low smoke zero halogen cable

More robust than normal patch leads

High quality connectors

Custom Lengths

Custom Breakout Tail Length

Application

For use in 100mb, 1Gb & 10Gb/s high speed LAN networks

High speed and legacy networks including Gigabit

Ethernet, Fast Ethernet and Ethernet

Data centres

Supports video, data and voice services

Internal Data and Telecoms

Broadcast

Technical Parameters:

Out sheath Diameter	Tight buffer Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
(MM)	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
3.0×5.0	1.8	56.00	800	300	1000	500	20D	10D	-20+60
3.2×5.6	2.0	68.00	800	300	1000	500	20D	10D	-20+60
5.0×8.0	2.8	87.00	800	300	1000	500	20D	10D	-20+60
