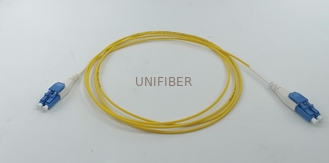

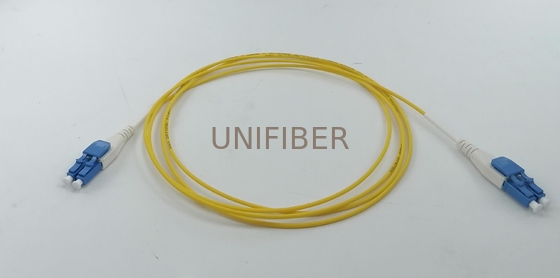

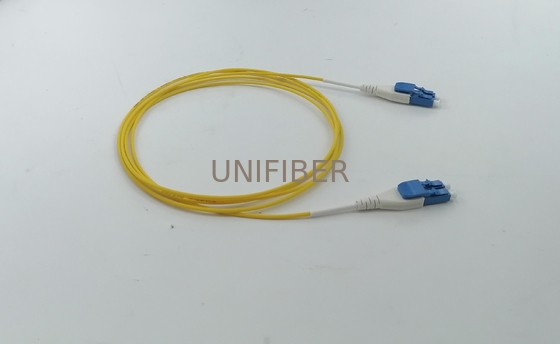

Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M

Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M
Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M

Large Image :  Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: ROHS
Model Number: SUNCALL LC Uniboot Connector
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: LC Uniboot Patch Cord Connector: SUNCALL LC Uniboot Connector
Fiber Type: G657A2 Cable Length: 3m
Jacket Material: LSZH Application: Fiber Patching

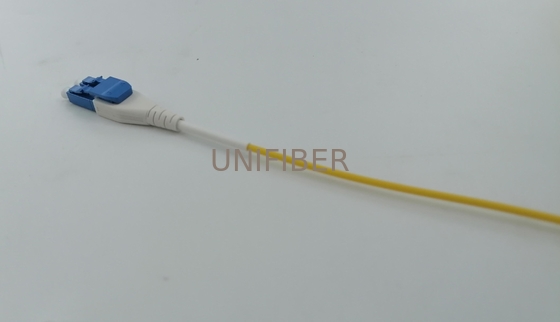

This is SUNCALL LC Uniboot Connector, it designed with a simple polarity reversible function, the LC Uniboot Connector is manufactured to provide a stronger, more stress-resistant retention force between connector and cable. Used for single, multi-mode and APC applications, the practical design of the LC Uniboot Connector makes it easy to engage and disengage from even the most compact panels.



Features:

Strong retention force connector
Easy Click & Flip polarity change, no jig required
Available in a variety of colors

Specification:
Fiber Type: SM (9/125), MM (50/125, 62.5/125)
Application Mode: SM, MM, APC
Insertion Loss: 0.3dB or lower
Return Loss: 55dB or more UPC, 65dB or more APC
IEC-61754-20, IEC-61755-3-2 and TIA-604-10A-2002 Standard-Type LC


Click & Flip Polarity Change – Single & Multi Mode:
Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M 0

Single Mode Duplex LC to LC Uniboot Fiber Patch Cord 2.0mm Round Cable 3M 1
