Huawei FTTR Hybrid Composite Dual-end XC/UPC-SC/UPC Patch Cord

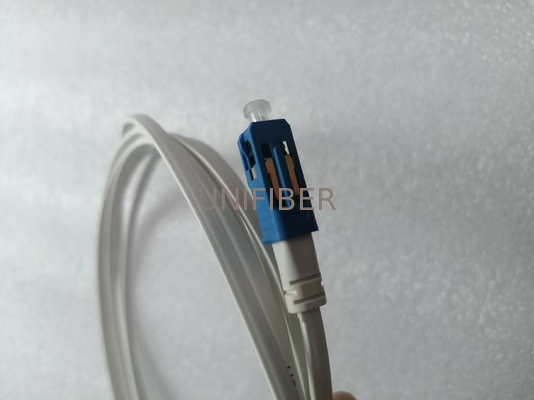

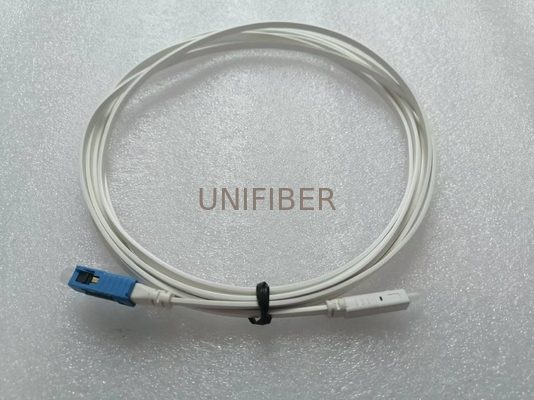

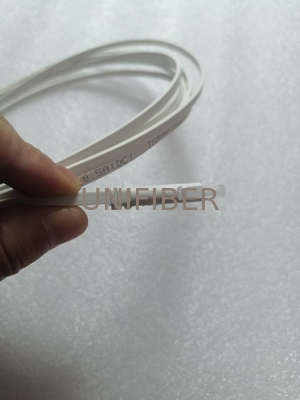

Large Image : Huawei FTTR Hybrid Composite Dual-end XC/UPC-SC/UPC Patch Cord

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ROHS
Model Number:	XC/UPC OPGW Patch Cable

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Dual-end XC/UPC-SC/UPC Patch Cord	Connnector A:	XC/UPC
Connector B:	SC/UPC	Fiber Type:	G657A2
Cable Jacket:	LSZH	Jacket Color:	White
Application:	FTTR

Dual-end round patch cord (XC/UPC-SC/UPC) are applicable to indoor FTTR scenarios and provide optical path interconnection.

Features

XC/UPC to SC/UPC.

Small outer diameter, light weight, and small footprint.

It has excellent bending performance and good flexibility, low friction coefficient and convenient construction.

Applications:

Indoor fiber wiring

On-site fiber connections to terminal equipment

Integration with Huawei FTTR solutions

Specification

Specification	Detail
Working Temperature	-10 ℃ ~ +60 ℃
Working Humidity	0% ~ 95% (+40 ℃)
Storage Temperature	-15 ℃ ~ +60 ℃
Rated Working Voltage (DC)	48~56 V
Rated Working Current (DC)	0.25 A
Maximum Carrying Distance	For a trunk OPGW hybrid cable of 20 m, branch hybrid cables can support up to 80 m. For a trunk OPGW hybrid cable of 2 m, branch hybrid cables can support up to 150 m.
Conductor Spacing	1.70 ± 0.03 mm
Outer Sheath Material	White – Low Smoke Zero Halogen / Stealth – PVC
Optical Fiber	G.657A2 1 Core
Material	Braided Copper, 7X0.16 mm/26 AWGX2
Connector Type	Dual-end XC/UPC Optical-Electrical Hybrid Cable Connectors
Insulation Resistance	≥ 500 mΩ at room temperature with DC 300 V for 1 min
Dielectric Strength	1000 V for 1 min, leakage current less than 0.5 mA
