High Density SN to SN Fiber Optic Patch Cords 400G OSFP/QSFP-DD

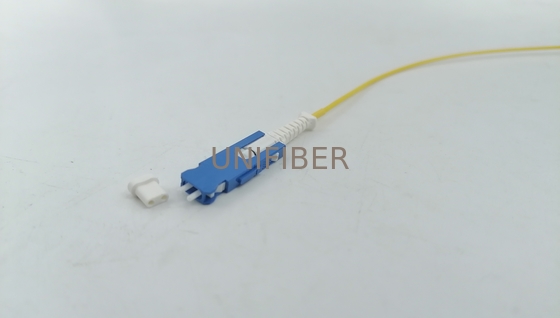

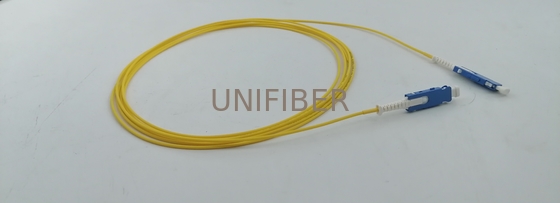

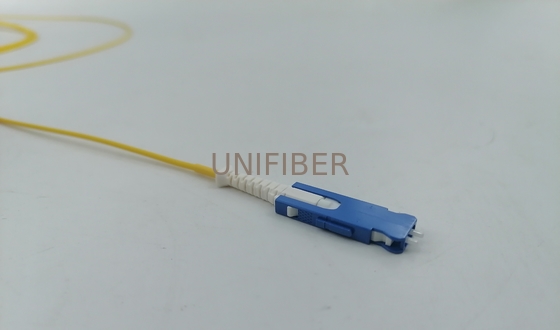

Large Image : High Density SN to SN Fiber Optic Patch Cords 400G OSFP/QSFP-DD

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ROHS
Model Number:	SN Fiber Optic Patch Cords

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Products:	SN Fiber Optic Patch Cords	Connector:	SN To SN
Fiber Type:	G657A2	Cable Diameter:	2.0mm
Jacket Material:	PVC(OFNR)	Application:	400G OSFP/QSFP-DD

The SN® Fiber Optic Patch Cords is the ultimate designed and optimized for next-generation data rates, the SN® patch cord offers network operators the chance to densify their existing legacy infrastructure whilst at the same time providing an upgrade path to 400G and beyond. It is suitable for termination to either 1.6 mm or 2.0 mm round cable that incorporates a ruggedized jacket and internal strain relief.

The SN® connector has an integrated ‘push-pull’ boot that simplifies insertion and removal of the connector even in dense patch panels where finger access is limited. A gang-clip can be added to four individual SN® connectors allowing them to be patched simultaneously to either adapters or 4-channel (8 fibers) transceivers (subject to product selection).

Features

Very Small Form Factor (VSFF) connector

Unique push-pull boot for simple installation and removal

All Assemblies are machine polished providing highest quality

Compared with LC dual core connector, the size is greatly reduced. Compared with LC dual core connector, the size is greatly reduced.

Designed for OSFP/QSFP-DD applications

Applicable to 1.25mm inserts

OSFP/QSFP-DD module can accommodate 4 SN connectors

Application

High-density patching

QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates

Telecommunication networks

Data centers

Specification

Parameters	SN to SN Optical Fiber Patch Cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SN to SN
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
