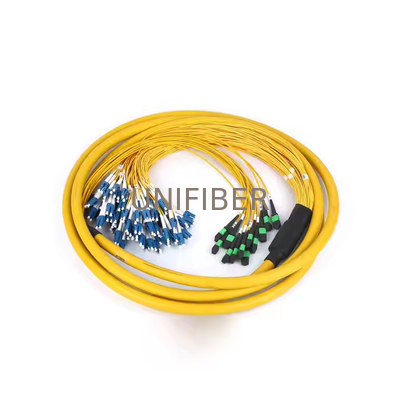

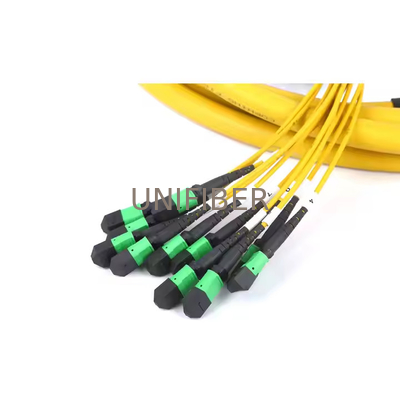

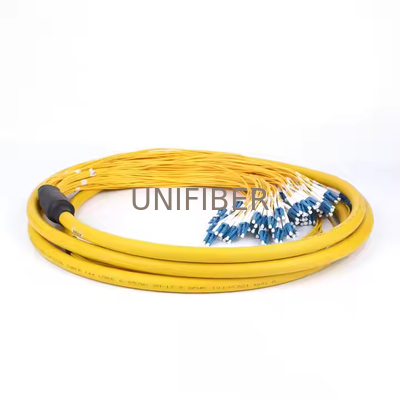

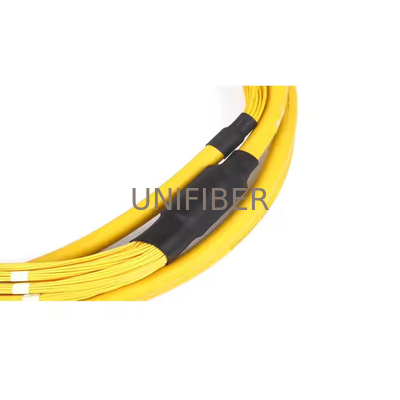

Data Center MPO MTP to LC UPC Single Mode 144 core Breakout Cable

Large Image : Data Center MPO MTP to LC UPC Single Mode 144 core Breakout Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	144 Fiber MPO to LC Break Out Cable

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	144 Fiber MPO To LC Break Out Patch Cable	Fiber Counts:	144 Fiber
Connector:	MPO-12F	Fiber Type:	SM
Polarity:	B	Application:	Data Center

This MPO to LC multimode fiber optic patch cord is available in various lengths, allowing customers to choose the exact length required for their specific application, from 1m to customized lengths.

High-Density Connectivity: With 12 cores and an MPO to LC connector, this patch cord enables high-density connectivity, making it ideal for data centers, telecommunications, and other high-density fiber optic applications.

Durable and Flexible: Constructed with PVC OFNR LSZH plenum material, this fiber optic patch cord offers durability and flexibility, ensuring reliable performance in a variety of environments.

Features

Type A, Type B and Type C Polarity Options available

Each cable 100% tested for low insertion loss and back reflection

Custom lengths and cable colors available

OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options

Reduced Insertion Loss by up to 50%

High Durability

High Temperature Stability

Good Exchangeability

High Density design cuts down on installation costs

Designed for 40Gig QSFP systems

Specification

Connector Type A	MPO/Female	Connector Type B	LC Duplex
Wavelength	850/1300nm	Fiber Type	50/125 OM3
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
MPO Connector IL	≤0.35	MPO Connector RL	≥35dB
LC Connector IL	≤0.30	LC Connector RL	≥35dB
Fiber Count	8 Cores, 12 Cores	Cable Jacket	OFNR(PVC)/LSZH/Plenum(OFNP)
Jacket OD	3.0mm	Fan-Out Diameter	0.9mm or 2.0mm
Installation Tensile Load	66 N
Tensile Strength (Long/Short Term)	80N/240N
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1PC/bag
