16 Fibers MPO-16 APC (Female) to 8 LC UPC Breakout Patch Cord for 800G to 8x100G Connection

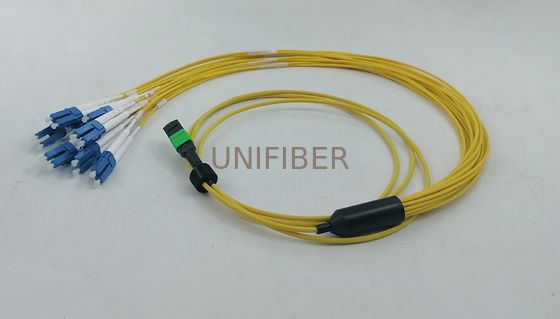

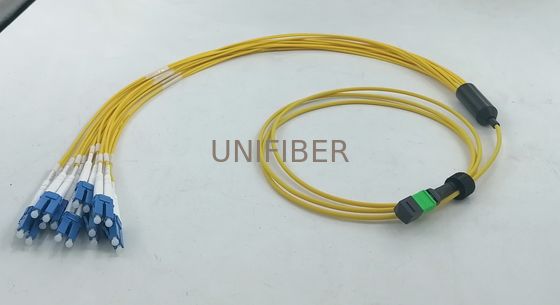

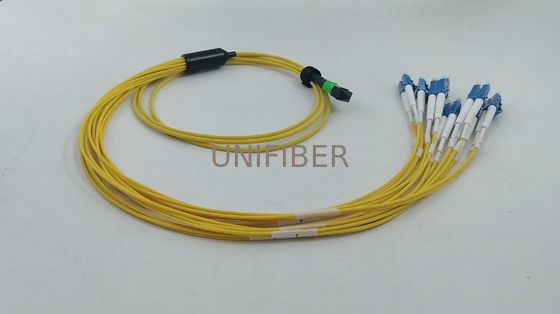

Large Image : 16 Fibers MPO-16 APC (Female) to 8 LC UPC Breakout Patch Cord for 800G to 8x100G Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	16 Fibers MPO to LC Breakout Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	16 Fibers MPO To LC Harness Patch Cable	Connector A:	MPO-16 APC (Female)
Connector B:	8x LC UPC Duplex	Fiber Type:	Single Mode (OS2)
Jacket:	LSZH	Polarity:	Type B
Length:	1M

The MPO/MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MPO/MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MPO/MTP®-16 is optimized for 800G OSFP XDR8 to 100G QSFP28 FR, 800G QSFP-DD/OSFP DR8 to 100G QSFP28 DR optics connection and high-density data center applications.

Features

Deliver stable signals and achieves flexible system design.

Allow tighter cable bends for slack storage and routing.

Fire resistance and low smoke to minimize damage.

Minimize waste, optimize cable management, and speed deployment for lower installation costs.

Application

Utilize 800G QSFP-DD/OSFP and 100G QSFP28 transceivers for 800G to 8x100G linking.

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Specification

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30
