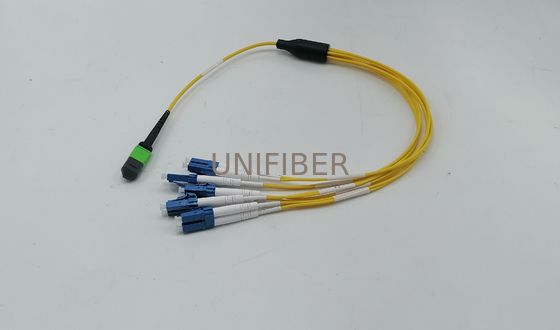

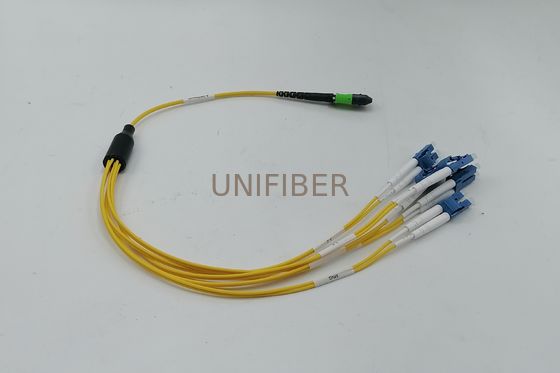

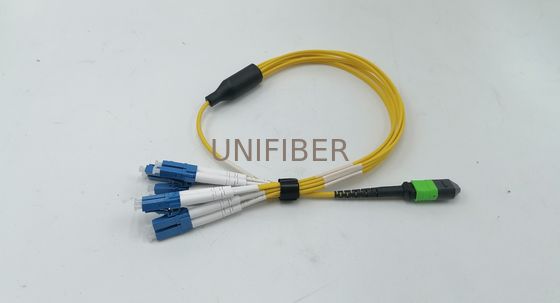

1m (3ft) MTP to 4 LC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Yellow

Large Image : 1m (3ft) MTP to 4 LC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Yellow

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MTP to LC Breakout Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	MTP To LC Harness Cable	Capacity:	8 Fiber
Polarity:	Type B	Mode:	OS2
Jacket:	Plenum (OFNP)	Length:	1M

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MTP®-8 is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high-density data center applications.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.

Features

US Conec MTP® Connector with Optimal 0.35dB Low IL

Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius

OFNP Fire Safety-Rated for Use in Plenum Air Spaces

Color-Coded MTP® Connector Boots for Easy Identification

Typically Used for Patching Within a Cabinet

Application

High Density Cabling

Fast Data Rate Upgrade such as 10G to 40G migration

Data Center Solution

Specification

Connector A	US Conec MTP® Female (Pinless)	Connector B	LC UPC Duplex
Fiber Mode	OS2 9/125μm SM	Wavelength	1310/1550nm
Glass Fiber	Corning SMF-28® Ultra	Fiber Grade	G.657.A1
MTP Connector IL	0.35dB Max (0.15dB Typ.)	LC Connector IL	≤0.2dB
MTP Connector RL	≥60dB	LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32dB/km	Attenuation at 1550nm	≤0.18dB/km
Jacket OD	3.0mm	Fan-Out Diameter	2.0mm
Cable Jacket	Plenum (OFNP)	Fiber Count	8 Fibers
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	80/240N
Operating Temperature	-10 to 70°C (14 to 158℉)	Storage Temperature	-40 to 85°C (-40 to 185℉)
