Product Details:
Payment & Shipping Terms:
|
Product: | ROC Toneable Drop Cable 1-Fiber | Fiber Type: | G657A1 Or G657A2 |
---|---|---|---|
Fiber Count: | 1 Fiber | Jacket Material: | PE |
Toneable Wire: | 24 AWG Copper Wire | Strength Member: | FRP-Glass Fiber Reinforced Plastic Rods |
Application: | FTTH |

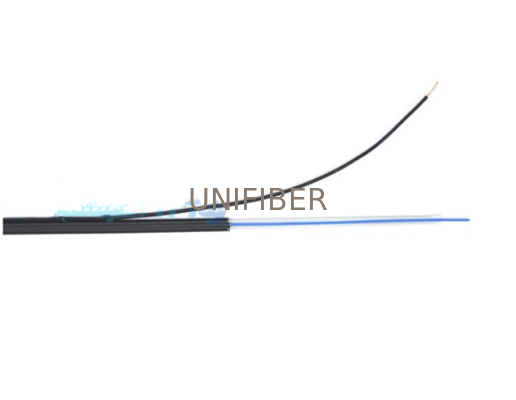

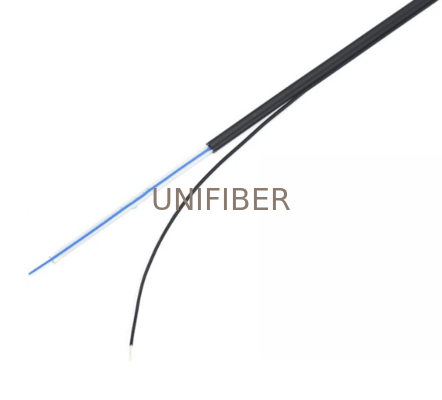

ROC Drop Toneable Cables with Fast AccessTechnology provides a more efficient, craft-friendly cable preparation unparalleled by traditional flat drop cables. The innovative Fast Access Technology design simplifies removal of the cable jacket resulting in up to 55 percent faster fiber access time than traditional drop cables. This technology improves ease of use because no special tools are needed. The cable design is backward compatible for easy connectorization or splicing. Optimized for both field-and-factory termination processes, the compact design allows for easier handling in the field, reduces slack storage requirements and improves transportation and storage costs. The toneable version allows for easy detection of buried cables with a toning conductor. ROC Drop Toneable with FastAccess Technology are also available in preconnectorized assemblies.

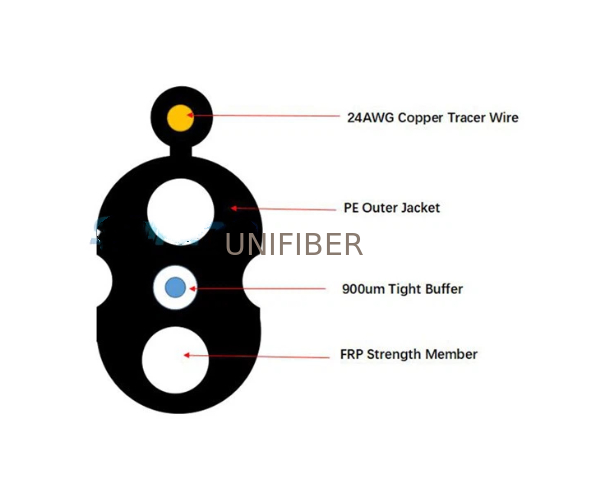

Specification
Item | Content | Value |
Fiber | Fiber Category | G657A1 |
Fiber Count | 1F | |
Primary Coating | 900µm PVC | |
Strength Member | Material | FRP |
O.D. | 1.2±0.1mm | |
Outer Jacket | Material | HDPE |
Color | Black | |
Size | 3X6.6 ±0.1mm (HxW) | |
Toneable Wire | Material | 24 AWG Copper Wire |
O.D. | 0.5mm | |
Max. Tensile Strength | Short-Term | 1350 N (300 lbf) |
Long-Term | 400 N (90 Ibf) | |
Storage Temperature | -40~+70°C | |
Installation Temperature | -10~+70°C |
