Product Details:
Payment & Shipping Terms:
|

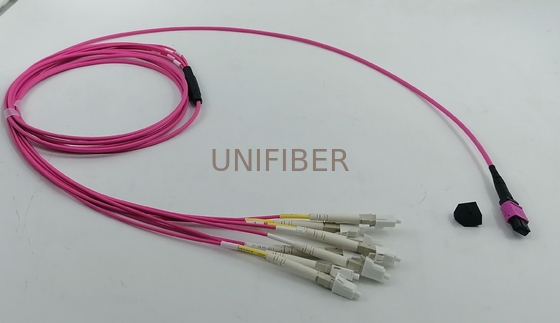

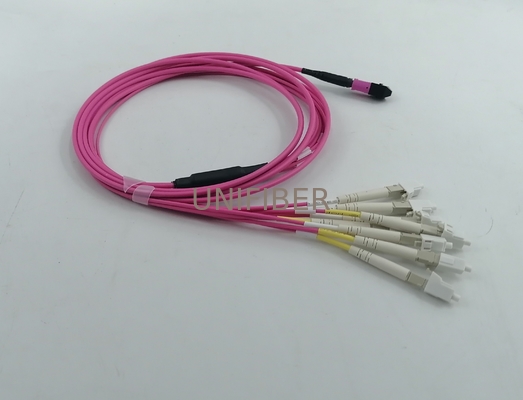

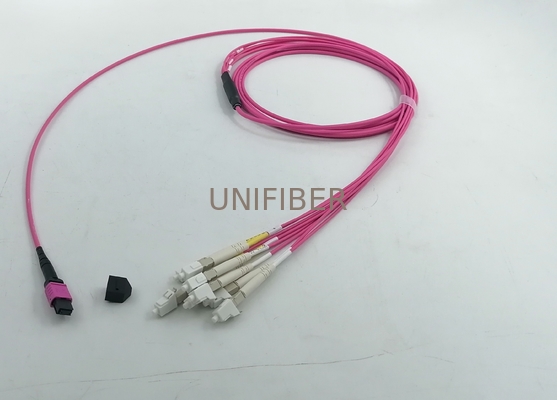

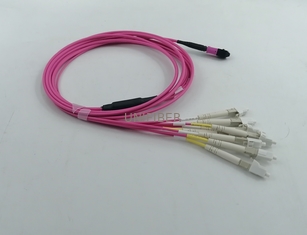

| Product: | MPO Harness Cable | Fiber Count: | 8 Core |
|---|---|---|---|
| Fiber Mode: | Multimode OM4 | Connector: | MPO Female |
| Polarity: | Type B | Jacket Material: | LSZH |
| Highlight: | MPO to LC breakout patch cord OM4,multimode fiber optic patch cable magenta,MPO LC duplex patch cord 1m |
||
| Attribute | Value |
|---|---|
| Product | MPO Harness Cable |
| Fiber Count | 8 Core |
| Fiber Mode | Multimode OM4 |
| Connector | MPO Female |
| Polarity | Type B |
| Jacket Material | LSZH |
MPO harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
MPO-8 is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics connection and high-density data center applications.
| Performance Level | Standard | Elite | ||||
|---|---|---|---|---|---|---|
| IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) | |||
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| SM | 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | |
| SM | 48F/APC | ≤0.75 | ≥60 | |||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| MM | 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| MM | 48F/PC | ≤0.50 | ≥20 | |||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| SM | UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | |
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
Fax: 86-755-29239581
