Product Details:
Payment & Shipping Terms:
|
| Product: | 1х2 Multimode Fiber Coupler | Wavelength: | 850nm |
|---|---|---|---|
| Splitting Ratio: | 50/50 | Fiber Type: | OM3 |
| Connector: | LC/UPC | Package: | Steel Tube |
| Highlight: | OM3 multimode fiber coupler 50/50,1x2 fiber optic splitter LC/UPC,850nm multimode splitter with warranty |
||

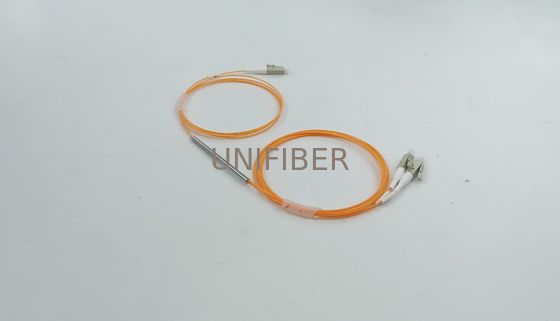

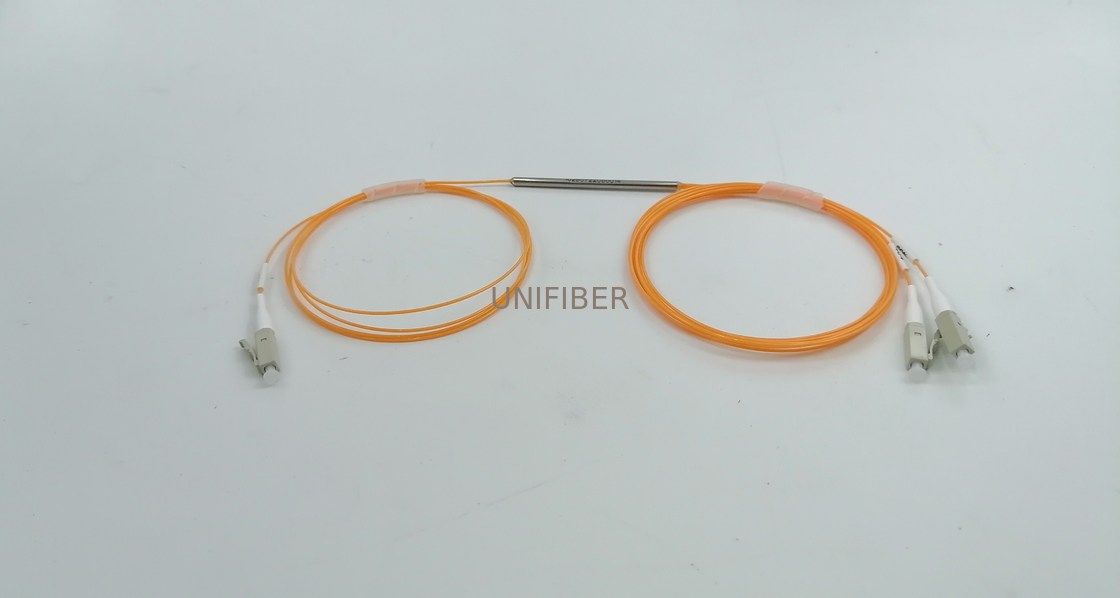

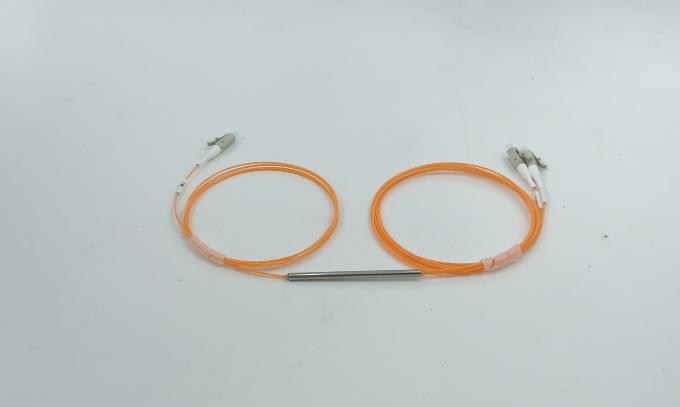

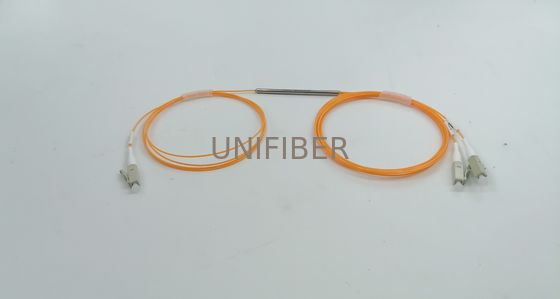

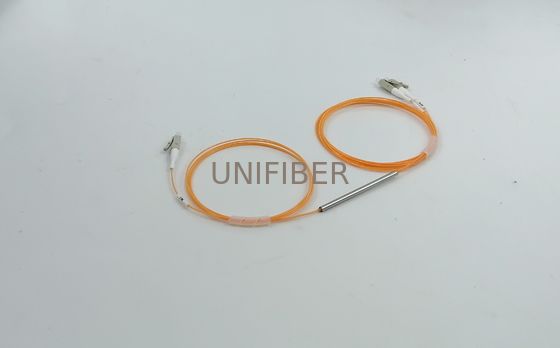

1×2(2×2) multimode fiber FBT coupler is also known as multimode fiber coupling, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT) technique. 1x2(2x2) multimode fiber coupling is made by 50/125 or 62.5/125 Multi-mode fiber.
| Parameter | Unit | Specification |
|---|---|---|
| Operating Wavelength | nm | 850 |
| Type | 1x2 | |
| Coupling Ratio | % | 50/50 |
| Insertion Loss | dB | ≤3.7 |
| Directivity | dB | ≥40 |
| Dimensions | mm | OD 3.0 x 54 |
| Fiber | OM3 50/125 | |
| Fiber Length | m | 1.0±0.1 |
| Pigtail Type | um | 900 |
| Connector | / | LC/UPC |
| Operating Temperature | ℃ | -20~85 |
| Storage Temperature | ℃ | -40~85 |
