FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit
FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

Large Image :  FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: MTC/SC Pushable Drop Cable
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Connector: MTC/SC APC Cable Size: 2*3mm FTTH Drop Cable, 3.0mm Round Cable
Fiber Type: G657a2 Cable Jacket: Black LSZH
Use For: Through Wall/conduit
Highlight:

FTTH pre-connectorized drop cable

,

SC-SC APC fiber patch cord

,

push-pull conduit fiber optic cable

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit

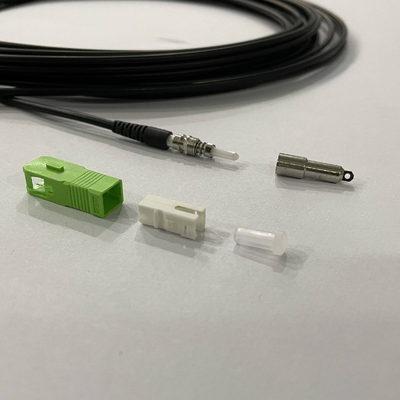

Through wall/conduit SCII type connector is a new type of connector developed for easy FTTH/conduit installation. The end face of the pin mostly adopts PC or APC type grinding method, and the fastening method uses the plug-in latch type with rotation. This connector is made of alloy material, which provides easy plugging/unplugging, small insertion loss fluctuation, high compressive strength, high installation density, high temperature resistance, and oxidation resistance.
Key Features
  • Metal protected mounting head, compatible with 2.8mm round cable

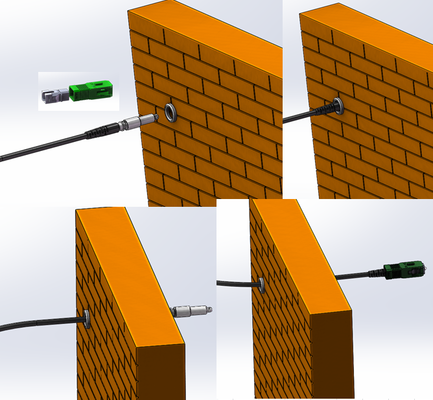

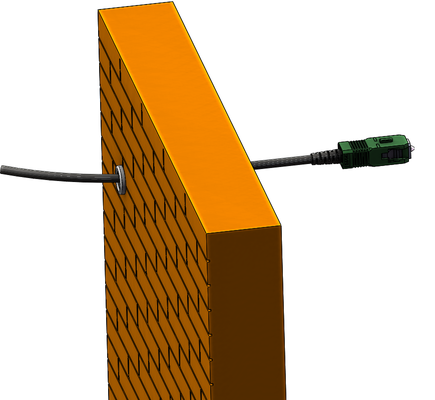

  • Designed for small pipelines or small wall holes
  • Available in both singlemode and multimode fiber with UPC and APC polishing
  • Fast installation requiring no special tools
  • Multiple installation methods available
Applications
  • Telecommunication systems
  • FTTR (Fiber to the Room)
  • CATV networks
  • LAN & WAN infrastructure
  • Network broadband
  • Building and home cable installation
Specifications
Items Singlemode Multimode
PC | UPC | APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss >45dB | >50dB | >60dB >35dB
Durability <0.1dB typical change, 500 matings
Ferrule Concentricity <1um & <0.5 um <4um
Ferrule inner diameter tolerance 125.0+1/-0um & 125.5+l/-0um 126+3/-0um & 127+3/-0um
Operating Temperature -40 to +75°C
Housing Color Blue/Green/Beige/Aqua/Pink
Boot color Black, White, Red, Green

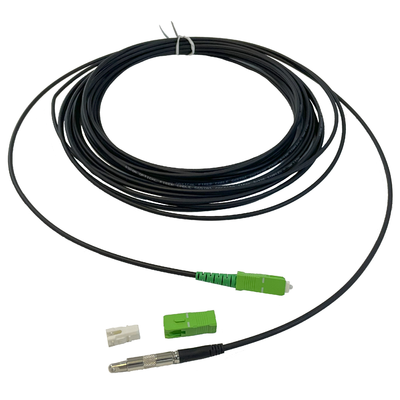

Cable 2*3mm FTTH drop cable, 3.0mm Round cable
FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable Through Wall/conduit 0
