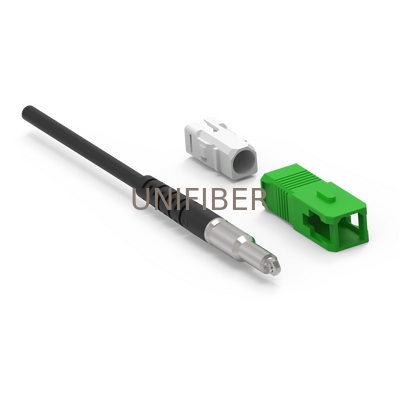

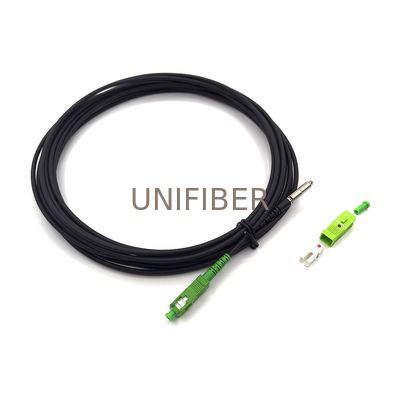

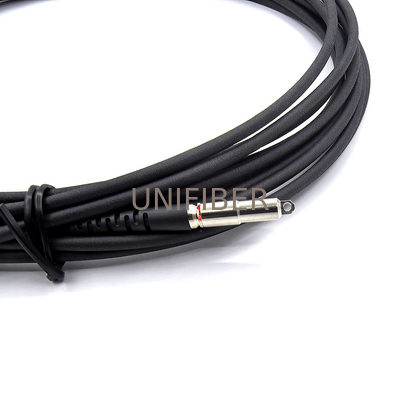

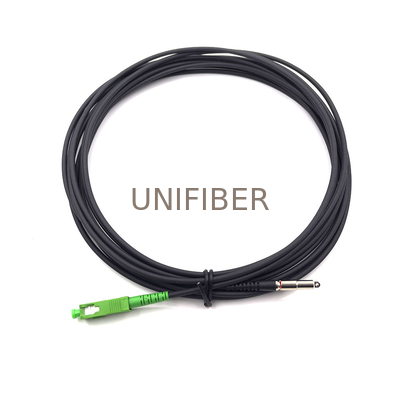

Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord

Large Image : Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MTC-SC Through-wall Bullet SCAPC Drop Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Connector:	MTC-Bullet SCAPC	Cable Size:	3.0mm Round Cable
Fiber Type:	G657a2	Cable Jacket:	Black LSZH
Use For:	Through Wall/conduit
Highlight:	Pullable FTTH Drop patch cord , MTC-SC through-wall fiber cord , Pre-connectorized SCAPC patch cord

Pullable MTC-SC Through-wall Bullet SC/APC Pre-connectorized FTTH Drop Patch Cord

FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable designed for through-wall and conduit installations. This Bullet SC/APC connector can be threaded through pipes with inner diameter greater than 6mm. As the final cable in FTTH projects, it connects FAP boxes, FTB, FDB, face plates, and ONU/ONT equipment with easy fiber accessibility and simple installation.

Key Features

Metal protected mounting head, compatible with 2.8mm round cable
Designed for small pipelines or small wall holes
Available in both singlemode and multimode fiber with UPC and APC polishing
Fast installation requiring no special tools
Multiple installation methods available

Applications

Telecommunication systems
FTTR (Fiber to the Room)
CATV networks
LAN & WAN infrastructure
Network broadband
Building and home cable installation

Bullet SC/APC Connector Application

Compatible Requirements

Suitable for pipes with inner diameter greater than 6.5mm and radius greater than 95mm

Pipe Threading Installation

How to thread through pipe in wall

Field Assembly Process

How to assemble in FTTH construction site

Technical Specifications

Items	Singlemode	Multimode
Insertion Loss	<0.2dB	<0.3dB
Return Loss	>45dB (PC) >50dB (UPC) >60dB (APC)	>35dB
Durability	<0.1dB typical change, 500 matings
Ferrule Concentricity	<1μm & <0.5μm	<4μm
Ferrule Inner Diameter Tolerance	125.0+1/-0μm & 125.5+1/-0μm	126+3/-0μm & 127+3/-0μm
Operating Temperature	-40 to +75°C
Housing Color	Blue/Green/Beige/Aqua/Pink
Boot Color	Black, White, Red, Green
Cable	2*3mm FTTH drop cable, 3.0mm Round cable
