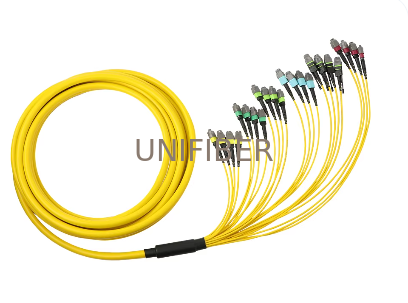

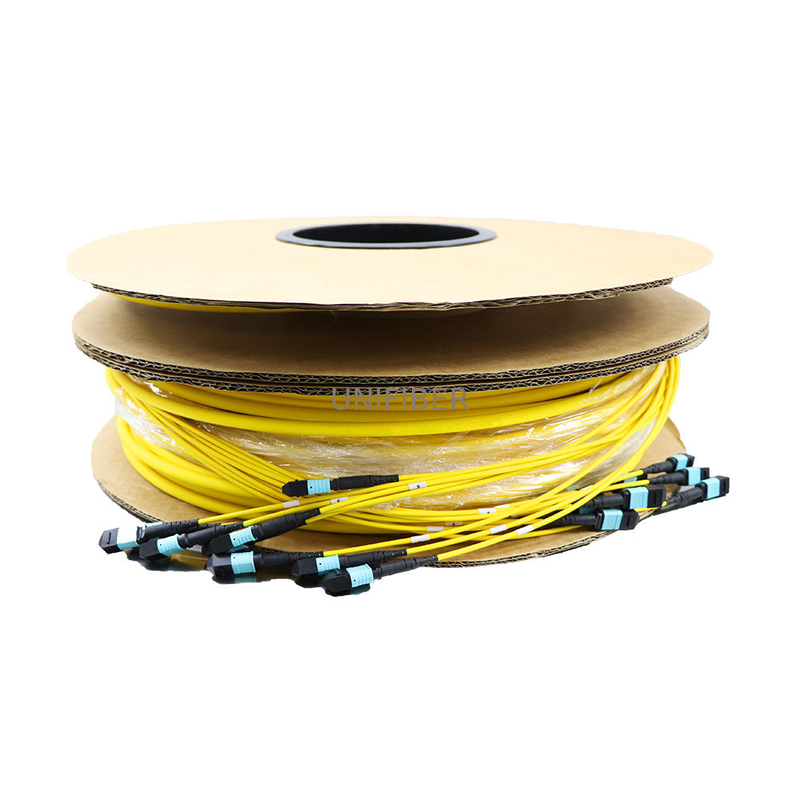

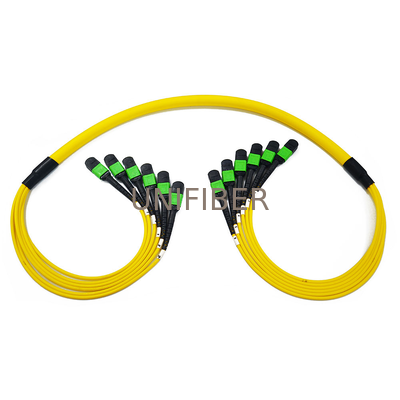

Single Mode 144 Core MPO-MPO Fiber Trunk Cable

Large Image : Single Mode 144 Core MPO-MPO Fiber Trunk Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	144 Core MPO-MPO Fiber Trunk Cable

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	144 Core MPO-MPO Fiber Trunk Cable	Fiber Counts:	144 Fiber
Connector:	MPO-12F	Fiber Type:	SM
Polarity:	B	Application:	Data Center
Highlight:	Single Mode MPO fiber trunk cable , 144 core MPO-MPO cable , MPO-MTP patch cord with warranty

Single Mode 144 Core MPO-MPO Fiber Trunk Cable

MPO-MPO Fiber Trunk Cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, reducing network installation or reconfiguration time and cost.

Key Features

100% pre-terminated and factory tested to ensure optimal transfer performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Available jacket materials: LSZH, OFNR, OFNP
Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations
Customized products available upon request

Applications

Data communication networks
Optical system access networks
Storage area networking fiber channel
High-density architectures

Technical Specifications

Performance Level	Standard	Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
MPO/MTP	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	UPC	≤0.30	≥60	≤0.10	≥60
LC/SC/FC/ST	SM	PC	≤0.20	≥50	≤0.10	≥50
LC/SC/FC/ST	MM	PC	≤0.20	≥30	≤0.10	≥30
