Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode

Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode
Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode

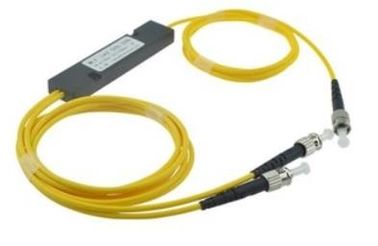

Large Image :  Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: FUSED WDM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister Case
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Wavelength: 1310/1550,980/1550nm,1480/1550nm Package: Steel Tube,ASB Box
Pigtail Type: 250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm Connector Type: FC,SC,LC,ST Or Customized
High Light:

cwdm passive multiplexer

,

coarse wavelength division multiplexer

Fused Wavelength Division Multiplexer 1310/1550nm,980/1550nm,1480/1550nm

Unifiber's Singlemode wavelength division multiplexer WDM 1310/1550,980/1550nm,1480/1550nm 1X2 2X2 combine or separate light at different wavelengths. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. These components have been extensively used in CATV, WDM networks, Fiber sensor and fiber optics instrumentation.

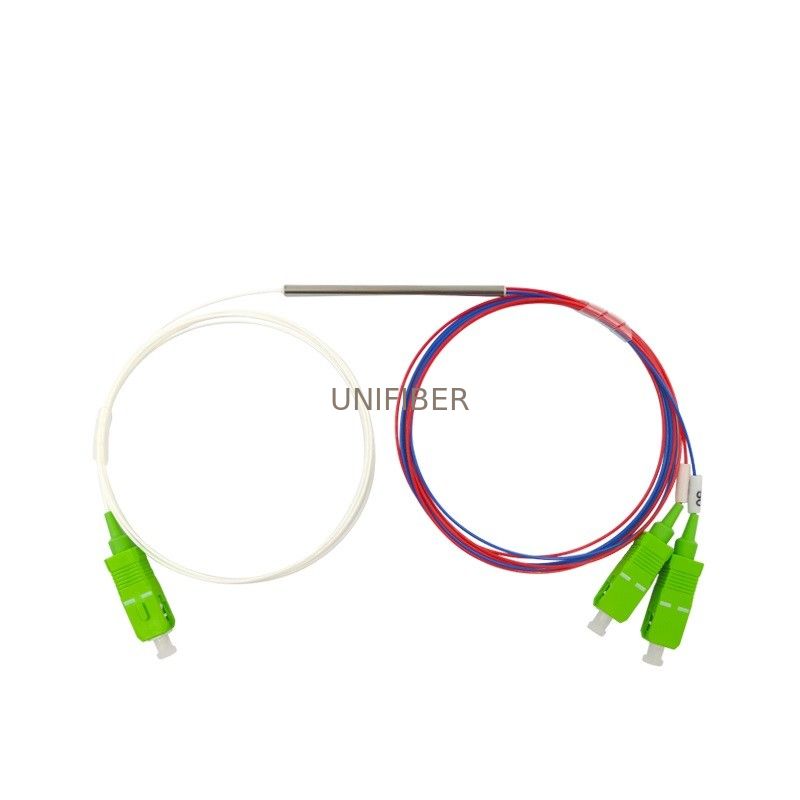

Fused Wavelength Division Multiplexer , Fiber Multiplexer Single Mode 0

Features:

♦ Low insertion loss

♦ High isolation

♦ Compact Size

♦ Top Quality-Price ratio



Application:

♦ Long-HauIUni and Bi-Directional

♦ Telecommunications System

♦ Digital, Hybrid and Am-video Systems

♦ High-Speed Multi-Wavelength Systems

♦ CATV Links & Fiber Sensors



Compliance

♦ Telcordia GR-1209-CORE-2001

♦ Telcordia GR-1221-CORE-1999

♦ RoHS



Parameters

Parameter WDM-1310/1550 WDM-980/1550 WDM-1480/1550
Operating Wavelength(nm) 1310 & 1550 980 & 1550 1480 & 1550
Bandwidth(nm) ±15 ±15 ±5
Grade P A P A P A
Max Insertion loss(dB) ≤0.25 ≤0.3 ≤0.25 ≤0.30 0.3 0.35
Peak Isolation(dB) ≥24 ≥22 ≥23 ≥22 ≥22 ≥20
Min Isolation(dB) ≥17 ≥16 ≥20 ≥18 ≥15 ≥15
PDL (dB) ≤0.05 ≤0.10 ≤0.05 ≤0.10 ≤0.1 ≤0.15
≤0.1
Temperature stability(dB) ≤0.002
Return loss(dB) ≥55
Directivity(dB) ≥55
Operation temperature -40 to +85
Store temperature -40 to +85
Fiber type G652 or G657 Corning HI 1060 Flex or OFS 980-16 G652



Package

Configuration 1X2(2X2)
Dimensions(XL)(mm) 1310/1550 WDM 980/1550 WDM 250μm bare fiber 3.0X45
900μm loose tube 3.0X54
900μm/2mm/3mm loose tube 90X20X10
1480/1550 WDM 250μm bare fiber 3.0X60
900μm loose tube 3.0X70
