| Product: | Rack Mount DWDM AAWG | Channels: | 40 |
|---|---|---|---|
| Wavelength: | CH21~CH60 | Connector: | LC/UPC |
| Package: | Rack Mount | Types: | Gaussian Or Flat Top |
| High Light: | 100Ghz Wavelength Division Multiplexer,40CH Wavelength Division Multiplexer,100Ghz DWDM Multiplexer |
||
100Ghz 40CH Wavelength Division Multiplexer DWDM AAWG Mux Demux
Description of Rack Mount 100Ghz 40CH DWDM AAWG Mux Demux Dual Fiber CH21~CH60 LC/UPC
100GHz C Band DWDM AAWG (Athermal Arrayed Waveguide Grating) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.Gaussian and Flat Top available.DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
Features:
Athermal design operates over operating temperature range
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Applications:
DWDM Network
DWDM transmission
Metro and long haul network
Specification:
| Parameter | Unit | Gaussian | Flat-Top | |
| Channel Wavelength (nm) | nm | ITU 100 GHz Grid | ||
| Number of channels | - | 16,32,40,48 or other | ||
| Wavelength Accuracy (nm) | nm | ± 0.05 | ||
| Insertion Loss (dB) | dB | < 4.5 | < 5.0 | |
| Channel Passband (@-1dB bandwidth) | nm | > 0.2 | > 0.3 | |
| Channel Passband (@-3dB bandwidth) | nm | > 0.4 | > 0.5 | |
| Total Crosstalk(dB) | dB | > 20 | > 23 | |
| Channel Ripple (dB) | dB | < 0.75 | ||
| Isolation(dB) | Adjacent | dB | > 25 | |
| Non-adjacent | dB | > 30 | ||
| Max. Uniformity | dB | 1.2 | ||
| Chromatic Dispersion | ps/nm | -20~+20 | ||
| Max. Polarization Dependent Loss | dB | 0.5 | ||
| Max. Polarization Mode Dispersion | ps | 0.5 | ||
| Min. Directivity | dB | > 50 | ||
| Min. Return Loss | dB | > 45 | ||
| Maximum Power Handling | mW | 300 | ||
| Fiber type | - | SMF-28e or other | ||
| Operating Temperature | °C | -5 ~+70 | ||
| Storage Temperature | °C | -40 ~+85 | ||
| Dimension | mm | L120 x W70 x H12 | ||
| 19" 1U Rack mount:431.5*250*44 | ||||

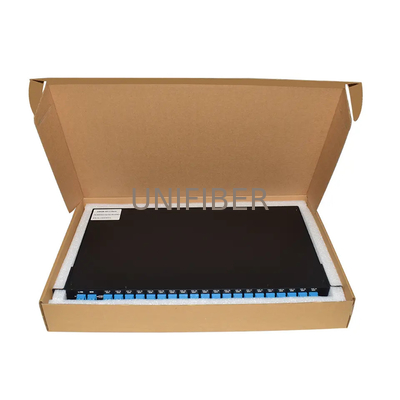

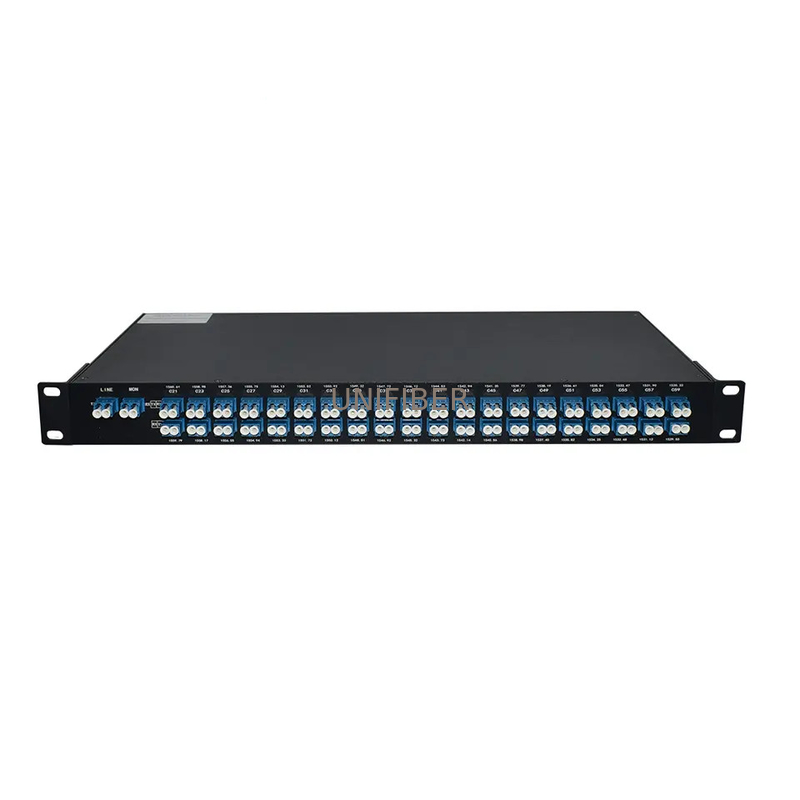

Picture of 100Ghz 40CH DWDM AAWG Mux Demux Module
