Product Details:
Payment & Shipping Terms:
|
| Product: | CWDM Mux Demux Passive Module | Channel Spacing: | 20nm |
|---|---|---|---|
| No Of Channels: | 4/8/12/18 Channels | Wavelength: | 1270~1610nm |
| Connector: | LC/UPC | Package: | ABS Module |
| High Light: | CWDM Wavelength Division Multiplexer,1610nmWavelength Division Multiplexer,Demux 8 Channel Multiplexer |
||
8 Channel CWDM Mux Demux Wavelength Division Multiplexer Single Dual Fiber
Description of Single/Dual Fiber 1270~1610nm 8 Channel CWDM Mux Demux Multiplexer
The 8 channel CWDM passive MUX and DEMUX modules deliver the benefits of a Coarse Wave Division Multiplexer in a fully passive solution. With matching MUX/DEMUX units placed at each end of an optical link, up to 8 data channels can be combined and transmitted over a single-mode fiber trunk. It covers all channels from 1270nm to 1610nm in 20nm increments.
Features
Low Insertion LossHigh Isolation
High Stability & Reliability
Industrial Operating Temperature (-40~+80℃ available)
Customized Package type Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount
Application
CWDM System
PON Networks
CATV Links
Specification

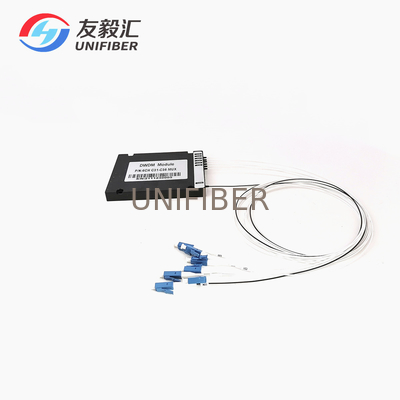

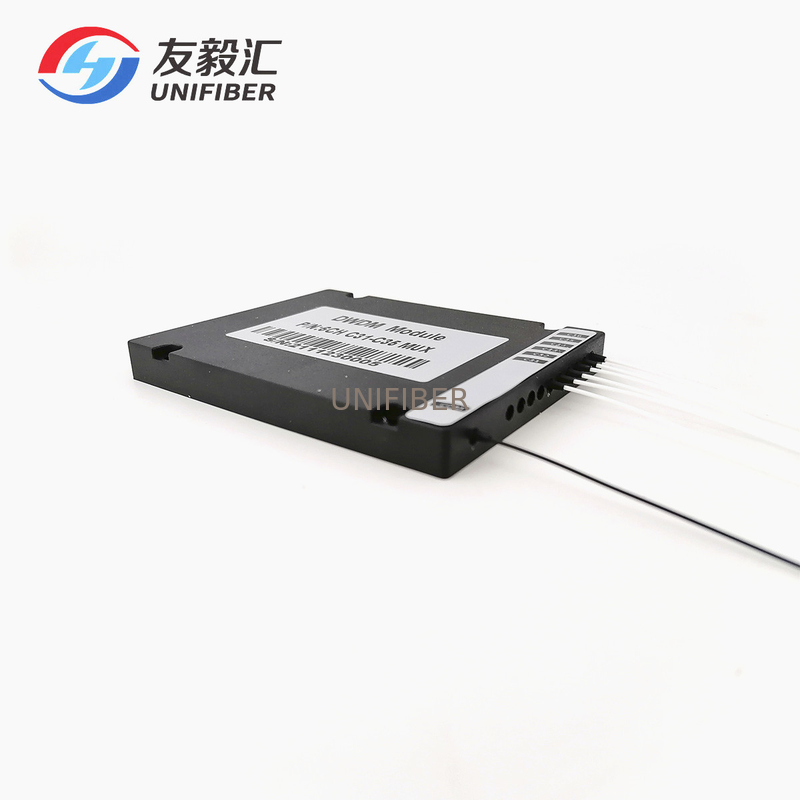

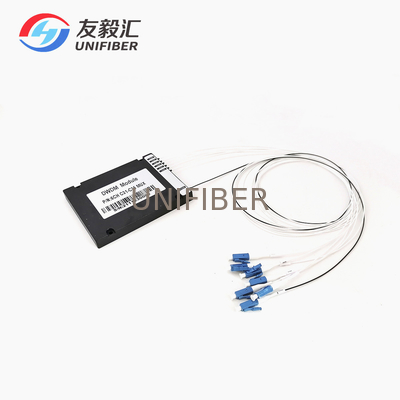

Picture of 4/8/16/18 Channels CWDM Mux/Demux Passive Module
