Product Details:
Payment & Shipping Terms:
|
| CH: | 8 | Multiplexer: | Mux/Demux |
|---|---|---|---|
| Connector: | Duplex LC | Fiber: | Dual Fiber Or Single Fiber |
| Package: | 1U 19" Rack Mounted | Application: | WDM Network |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

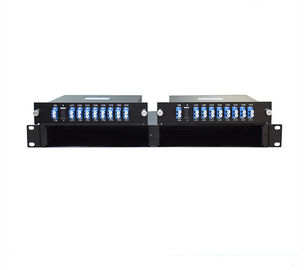

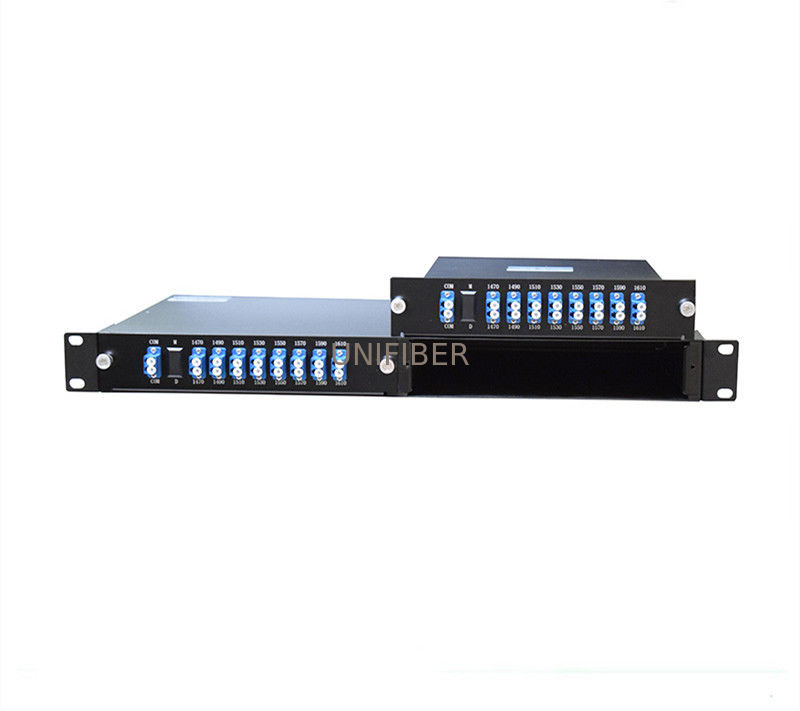

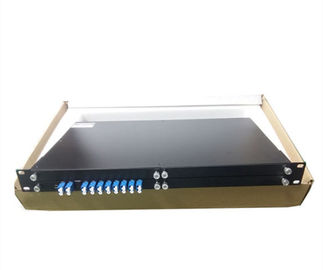

8CH CWDM Mux/Demux Module 1470nm-1610nm LC/UPC, standard 19" 1U rack mounted with 2 LGX module slots
Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
Features
Low Insertion Loss
Wide pass band
High channel
High stability and reliability
Epoxy free on optical path
Applications
Line monitoring
WDM network
Telecommunication
Cellular application
Fiber optical amplifier
Access network
Parameters:
| Parameters | Specification | Unit |
| Channel Spacing | 20 | nm |
| Operating Wavelength Range | 1260~1620 | nm |
| Channel Number | 8 | - |
| Center Wavelength(Channel) | 1471~1611 | nm |
| Express Port Wavelength Range | NA | nm |
| Channel Passband | λc +6.5 | nm |
| Passband Ripple | ≤ 0.50 | dB |
| Insertion Loss | ≤3.0 | dB |
| Isolation (adjacent channel) | ≥30 | dB |
| Isolation (non-adjacent channel) | ≥ 40 | dB |
| Polarization Dependent Loss | ≤0.15 | dB |
| Polarization Mode Dispersion | ≤ 0.10 | ps |
| Return Loss | ≥ 45 | dB |
| Directivity | ≥50 | dB |
| Power Handling | ≤300 | mW |
| Operation Humidity | 5~95 | RH% |
| Operating Temperature | -5 to 65 | oC |
| Storage Temperature | -40 to 85 | oC |
| Fiber Type | Corning G657A1 fiber | - |
| Connector Type | LC/UPC | - |
| Package Dimensions | 1U 19" | mm |
