Product Details:
Payment & Shipping Terms:
|
| CH: | 8ch Mux Demux | Connector: | SC/LC |
|---|---|---|---|
| Wavelength: | 1270~1610nm | Package: | LGX Module |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

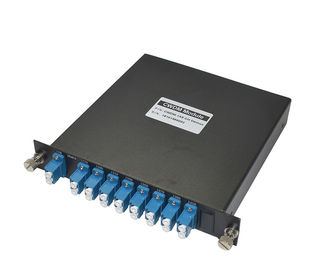

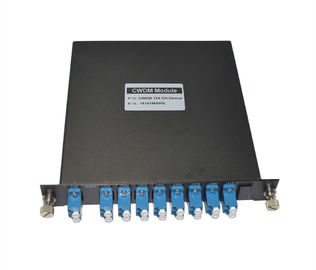

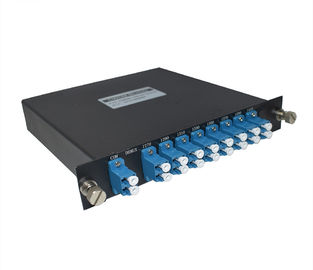

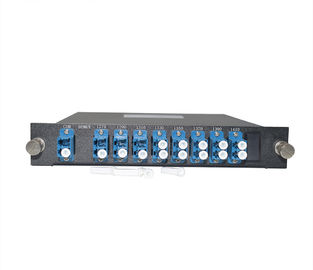

Customized LGX 8 channel CWDM MUX/Demux Module 1470~1610nm duplex fiber or Single fiber LC/UPC for WDM networks
Multiplexer and De-multiplexer CWDM Mux/demux is a flexible and low-cost solution that enables the expansion of existing fiber capacity. Coupled with highly reliable passive optics certified for environmentally hardened applications, the CWDM MUX/DEMUX solution lets operators make full use of available fiber bandwidth in local loop and enterprise architectures. Our CWDM MUX/DEMUX modules split up to 18 channels (20 nm spaced) to a single fiber. The standard packages are ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Box. No matter what kind of connectors (such as FC, ST, SC, LC, etc.) are all available, and we can also mix connectors on one device.
Features
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
Applications
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network
| Parameter | 4CH | 6CH | 8CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | ||
| Product Features | Mux orDemux or Mux&Demux | ||
| Channel wavelength (nm) | 1270~1610 | ||
| Center wavelength accuracy (nm) | ±0.5 | ||
| Channel pitch (nm) | 20 | ||
| Channel passband (@ -0.5db bandwidth (nm) | >14 | ||
| Insertion loss (dB) | ≤1.4 | ≤2.6 | ≤3.0 |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 |
| Channel ripple (dB) | 0.3 | ||
| Isolation (dB) adjacent | >30 | >30 | >30 |
| Isolation (dB) Non-adjacent | >40 | >40 | >40 |
| Polarization-dependent loss (dB) | <0.2 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return loss (dB) | >45 | ||
| Connector type | LC/APCOr customer specified | ||
| Maximum power (mW) | 500 | ||
| Working temperature (℃) | -20~70 | ||
| Storage temperature (℃) | -40~85 | ||
| Package type (mm) | LGX,Box, rack or customer specified | ||
